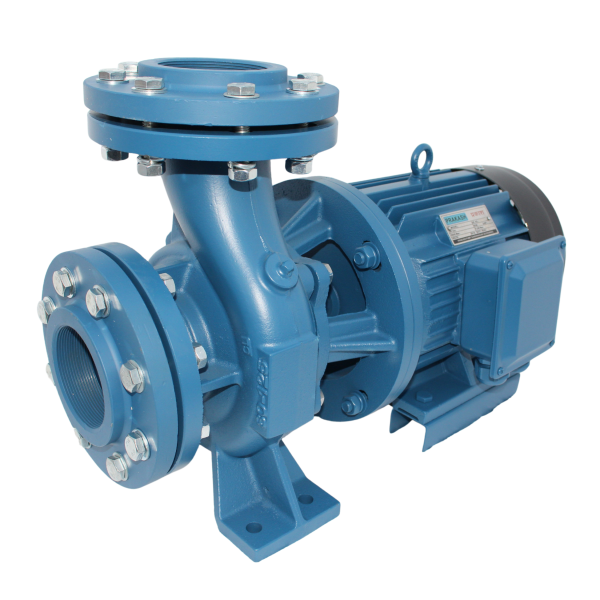

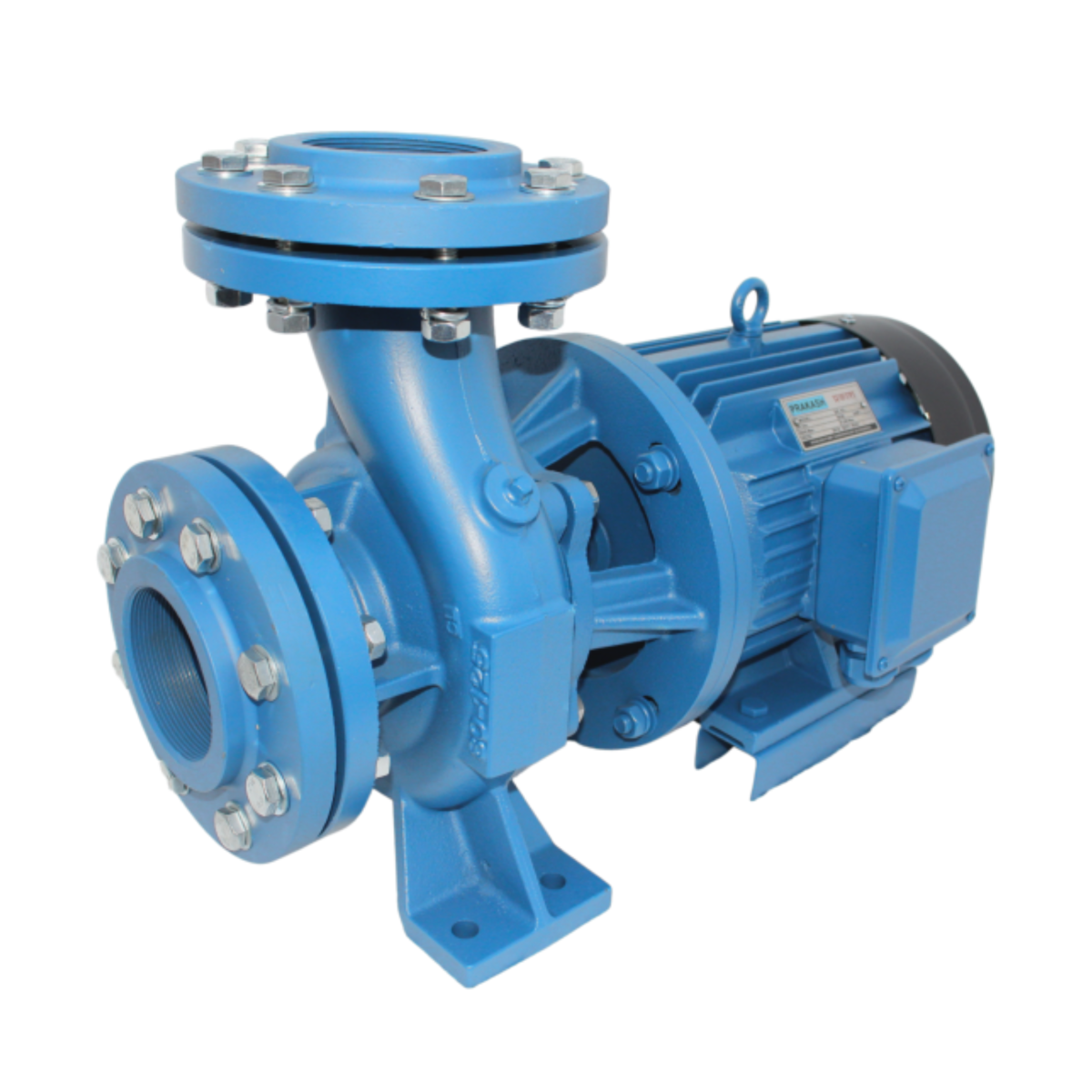

Prakash 5.5 HP Centrifugal Monoblock Pump PCM-5.5A
Frequency : 60Hz
Model : PCM-5.5A
SKU : PCM-5.5A
Flow :0 LPM - 1100 LPM
Head : 2 Meter - 16 Meter
Application:
- Civil Engineering
- Mines, quarries, coal ore, and slurries
- Sewage treatment plants
- General pumping purposes
- Max Flow: 1100 LPM
- Max Head: 16 m
- Speed: 3500 rpm
- Power: 4.0 kW / 5.5 HP
- Inlet/Outlet: 3"x3"
- Max Liquid Temperature: Up to 105°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX4 / IP54
- pH: 6-8
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 10 | 30 | 40 | 50 | 60 | 66 | |
KW | HP | LPM | 0 | 167 | 500 | 667 | 834 | 1000 | 1100 | |||
PCM-5.5A | 4.0 | 5.5 | 3"x3” | Head (meters) | 16 | 15.5 | 13 | 12 | 10 | 4 | 2 | |
