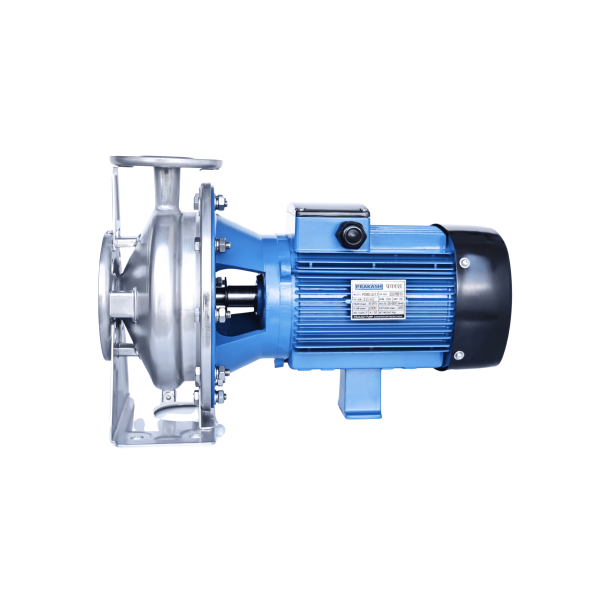

Prakash 5.5 HP Centrifugal Monoblock SS Pump PCM50-32-5.5

Frequency : 50Hz

Model : PCM50-32-5.5

SKU : PCM50-32-5.5

Flow :0 LPM - 367 LPM

Head : 43 Meter - 56 Meter

Application:

Pressure boiler feeding
Pure water treating system
Refining chemical industries
Hot and cold water circulation
Washing & sprinkling
Water supply system

Specification:

Max Flow: 367 LPM
Max Head: 56 m
Speed: 2900 rpm
Power: 4 kW / 5.5 HP
Inlet/Outlet: 2"x1.25"
Max Liquid Temperature: Up to 80°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IP55
pH: 4-10

Pump Selection Chart :

Model

Volt
(60Hz)

Phase

RPM

Inlet/Outlet

Max Flow
(LPM)

Max Head (m)

Max Suction
(m)

PCM50-32-5.5

380-420

3

2900

2"x1.25”

367

56

3

Pump Performance Chart :

Model	Power		Inlet/Outlet	Q	M3/H	0	3	6	9	12	15	18	20	22
Model	KW	HP	Inlet/Outlet	Q	LPM	0	50	100	150	200	250	300	333	367
PCM50-30-3.0S	4.0	5.5	2"x1.25”	Head (meters)		56	54	51	50	49	47.5	46	45	43
