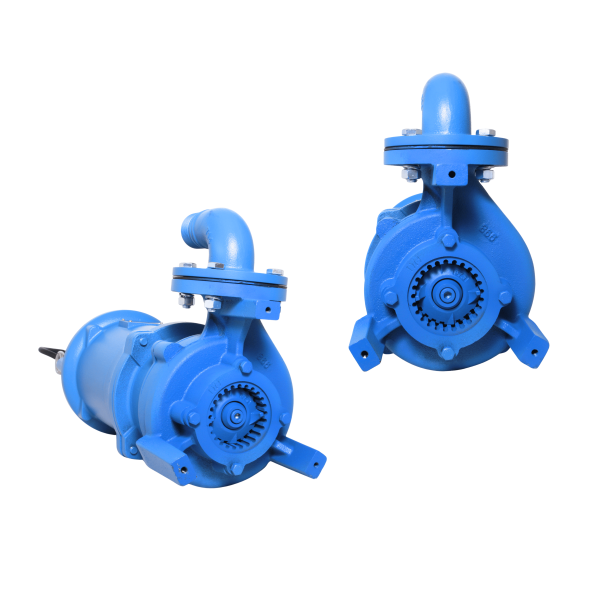

Prakash 5.5 HP Sewage Cutter Pump PSCP30-25-4.0

  • Prakash 5.5 HP Sewage Cutter Pump PSCP30-25-4.0
  • Prakash 5.5 HP Sewage Cutter Pump PSCP30-25-4.0

Frequency : 60Hz

Model : PSCP30-25-4.0

SKU : PSCP30-25-4.0

Flow :0 LPM - 417 LPM

Head : 6.1 Meter - 30 Meter

Application:

  • Scum pumping at the wastewater treatment plant
  • Municipal projects
  • Industrial packaged pump station
  • Home and domestic application (Special for the kitchen)
  • Pumping agricultural manure (dairy, hog, and poultry)


Specification:
  • Max Flow: 417 LPM
  • Max Head: 30 m
  • Speed: 3450 rpm
  • Power: 4.0 kW / 5.5 HP
  • Outlet: 2"
  • Max Liquid Temperature: Up to 40°C
  • Max Ambient Temperature Up to 40°C
  • Insulation Class: F
  • Protection class: IPX8 / IP68
  • pH: 4-10

Pump Selection Chart :


                         Model


        Volt
     (60Hz)


    Phase


   RPM


   Output

  Max     Flow
(LPM)

  Max   Head
    (m)


              PSCP30-25-4.0


  380-420


       3


  3450


        2"


   417


  30

Pump Performance Chart :



 Model

Power


Q

M3/H

0

3

  9

15

 18

 21

   24  25

KW

HP

LPM

0

50

 150

250

300

350

  400   417

PSCP30-25-4.0

 4.0

5.5

Head (meters)

30

29.1

 28

 25.5

 24

 21.5

    17    6.1
