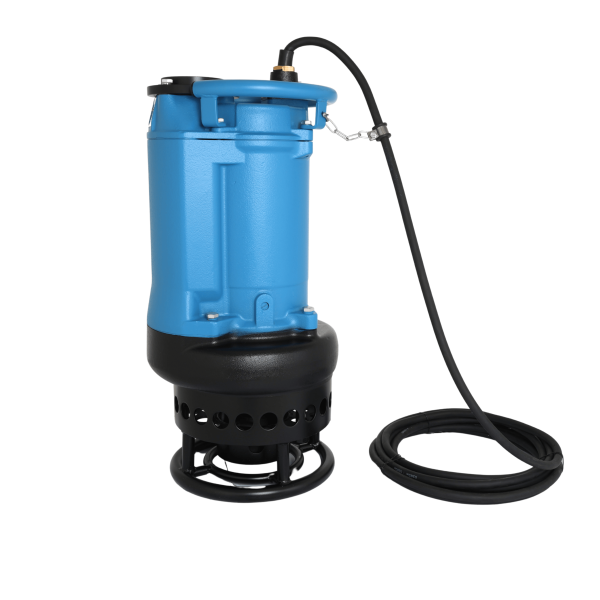

Prakash 5.5 HP Submersible Slurry Pump PSSP4.0-3
Model : PSSP4.0-3
SKU : PSSP4.0-3
Flow :1 M3/HR - 100 M3/HR
Head : 3 Meter - 15 Meter
Application:
Civil engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquid-containing mud, and bentonite
Specification:
Max Head: 15 meters
Max Flow: 1667 LPM
Power: 4 KW / 5.5 HP
Speed: 1450 RPM
Power supply: Three-phase 380V-420V, 50Hz
Insulation class: F
Protection class: IP68
Water temperature: up to 40°C
Outlet : 3"
Installation and Use :
Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.
High chrome alloy impeller combined with an agitator for pumping heavy slurry.
Slim design with a top discharge enabling installation in a smaller casing.
For bentonite mixed with water in foundation works or muddy water in civil engineering works.
|
Model |
Power |
Outlet |
Q |
M3/H |
0 |
40 |
80 |
100 |
|
|
KW |
HP |
LPM |
0 |
667 |
1334 |
1667 |
|||
|
PSSP4.0-3 |
4 |
5.5 |
3” |
Head (meters) |
15 |
12 |
7 |
3 |
|
