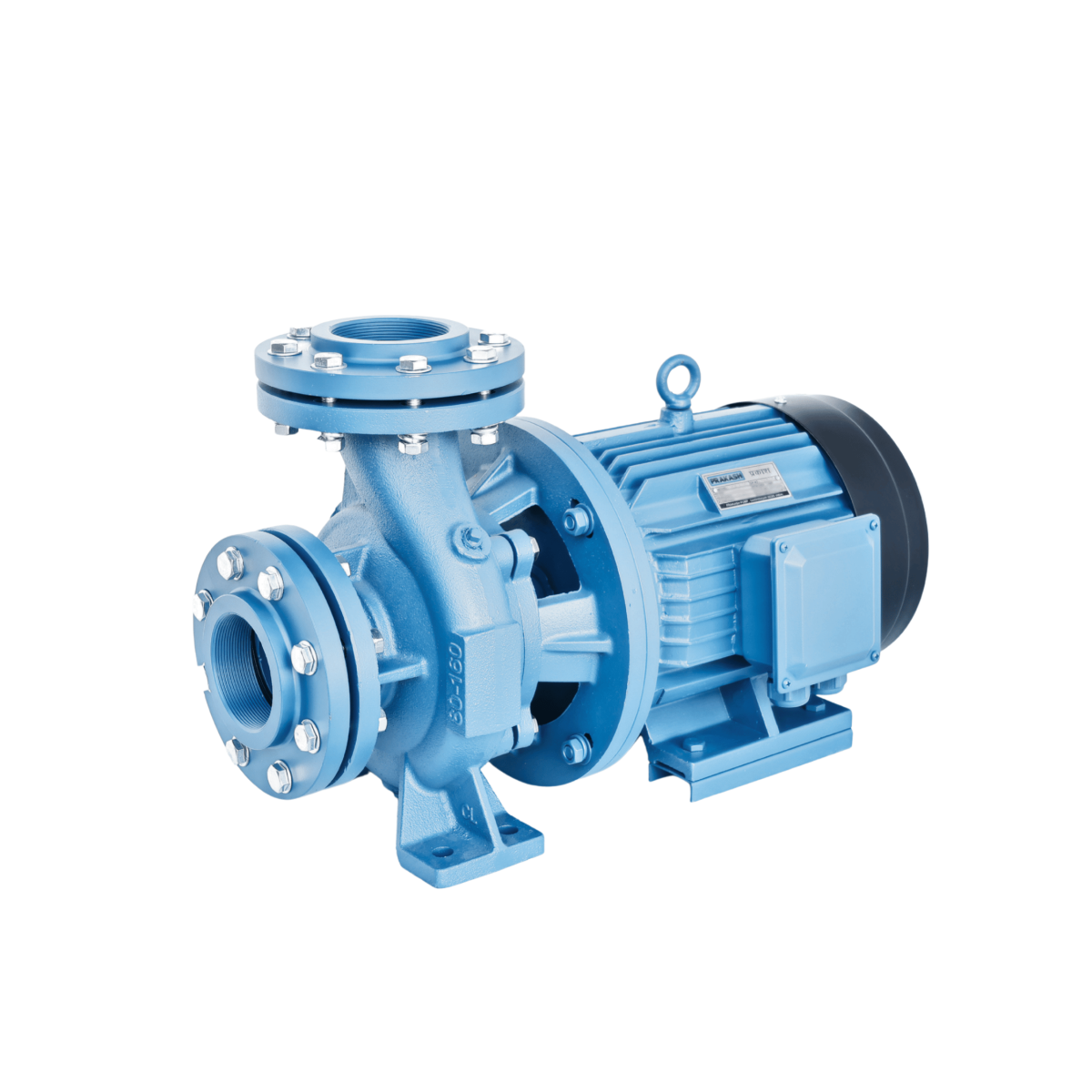

Prakash 7.5 HP Centrifugal Monoblock Pump PCM-7.5A
Frequency : 60Hz
Model : PCM-7.5A
SKU : PCM-7.5A
Flow :0 LPM - 1334 LPM
Head : 2 Meter - 25 Meter
Application:
- Civil Engineering
- Mines, quarries, coal ore, and slurries
- Sewage treatment plants
- General pumping purposes
- Max Flow: 1334 LPM
- Max Head: 25 m
- Speed: 3500 rpm
- Power: 5.5 kW / 7.5 HP
- Inlet/Outlet: 3"x3"
- Max Liquid Temperature: Up to 105°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX4 / IP54
- pH: 6-8
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 10 | 30 | 50 | 60 | 65 | 70 | 80 | |
KW | HP | LPM | 0 | 167 | 500 | 834 | 1000 | 1084 | 1167 | 1334 | |||
PCM-7.5A | 5.5 | 7.5 | 3"x3” | Head (meters) | 25 | 24.5 | 23 | 19 | 15 | 13 | 12 | 2 | |
