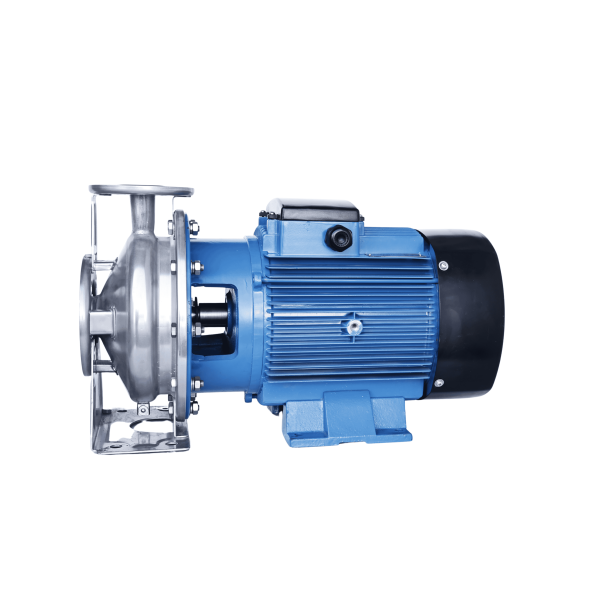

Prakash 7.5 HP Centrifugal Monoblock SS Pump PCM50-32-7.5
Frequency : 50Hz
Model : PCM50-32-7.5
SKU : PCM50-32-7.5
Flow :0 LPM - 367 LPM
Head : 52 Meter - 62 Meter
Application:
- Pressure boiler feeding
- Pure water treating system
- Refining chemical industries
- Hot and cold water circulation
- Washing & sprinkling
- Water supply system
- Max Flow: 367 LPM
- Max Head: 62 m
- Speed: 2900 rpm
- Power: 5.5 kW / 7.5 HP
- Inlet/Outlet: 2"x1.25"
- Max Liquid Temperature: Up to 80°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IP55
- pH: 4-10
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
| 2900 |
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 20 | 22 | |
KW | HP | LPM | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 333 | 367 | |||
PCM50-32-7.5 | 5.5 | 7.5 | 2"x1.25” | Head (meters) | 62 | 60 | 59.5 | 58 | 57 | 56 | 55 | 54 | 52 | |
