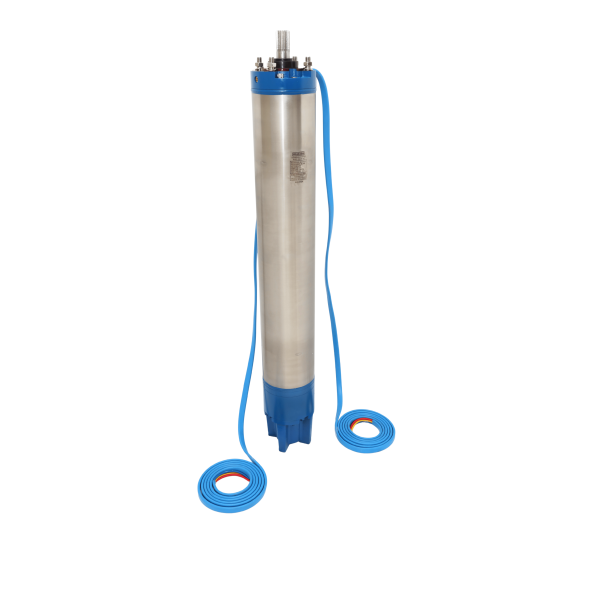

Prakash 8" Submersible Motor PSMP200
Model : PSMP200
SKU : PSMP200
Flow :0 M3/HR - 0 M3/HR
Head : 0 Meter - 0 Meter
Applications:
- Irrigation in horticulture and agriculture
- Drip and sprinkler irrigation
- Pressure boosting application
- Water treatment
- Civil and industrial application
- Domestic water supply
Specifications:
- Water temperature: Up to 45°C
- Minimum internal diameter of well: 8” Ø200mm.
- Power : 22Kw to 93Kw (30 HP to 125HP)
- Power Supply: Three-phase 380V-415V ±10%, 50 Hz.
- Insulation Class: F
- Protection Class: IP 68
- Max No. of starts per hour: 20
- Speed: 2900 rpm
- Standard motor with poly wrapping insulated winding
- Ambient temp. of 30°C with a minimum. Cooling
- flow: 22kW - 93kW, V=0.2m/s
- Installation position: Vertical/Horizontal
- Duty: S1
MODEL
MOTOR POWER
MAX. FULL LOAD (A)
STARTING CURRENT (A)
Full load
METHOD OF START
MAX. DOWN THRUST LOAD(N)
TORQUE (Nm)
STARTING TORQUE (Nm)
kW
HP
Eff. %
Power Factor
PSMP200- 30
22
30
47
220
84
0.86
D.O.L / SD
45500
73
120
PSMP200-35
26
35
54
280
85
0.85
D.O.L / SD
45500
86
145
PSMP200-40
30
40
60
330
85
0.85
D.O.L / SD
45500
101
168
PSMP200-50
37
50
80
400
86
0.85
D.O.L / SD
45500
122
200
PSMP200-60
45
60
92
520
86
0.85
D.O.L / SD
45500
149
268
PSMP200-75
55
75
112
660
87
0.85
D.O.L / SD
45500
180
370
PSMP200-85
63
85
126
720
87
0.85
D.O.L / SD
45500
206
410
PSMP200-100
75
100
151
930
88
0.86
D.O.L / SD
45500
246
520
PSMP200-125
93
125
190
1250
88
0.86
D.O.L / SD
45500
306
680
*For More information, please download the catalog
