Model : PEP250

SKU : PEP250

Flow :1 M3/HR - 1350 M3/HR

Head : 5.8 Meter - 88 Meter

Application :

Hot and cold water circulation
HVAC and cooling tower
Marine- Ballasting and Bilge
Booster and pressurization set
Irrigation and agriculture
Food and Chemical industry
Fire protection & fighting
Factory pumping

Specifications :
Models : PEP250-32, PEP250-40, PEP250-50
Speed : 1450 RPM (upon request 1750 RPM)
Max Flow : 1350 M3H
Max Head : 88m
Power : 40HP - 400HP
Inlet/Outlet : 12" x10"
Max Water Temperature : 85°C (105°C upon request)
Max Working Pressure : 1.0 MPa
Power Supply : Three Phase 380-420V, 50Hz (upon request 60Hz)
Insulation Class - F & B
Protection Class - IP54 & IP55
Duty - S1
Conveying medium : Clean water or liquid similar to clean water in physical property

Function, feature, installation and use :

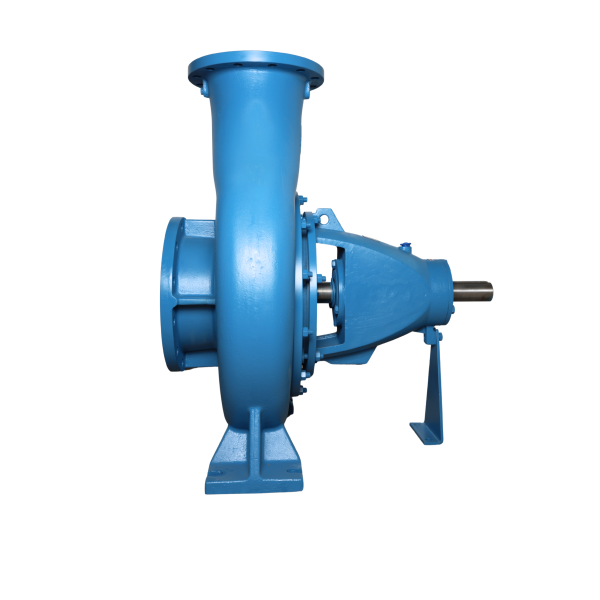

Prakash PEP series end suction centrifugal pumps are designed complying to BS EN733/DIN24255 standard. This Series of pumps are frame mounted pumps coupled with electric motors by flexible type of coupling and have a great advantages in interchangeable parts, high quality and low cost, wide applications in fire-fighting systems, air-condition systems, water treatment plants, water transport and supply.
