Model : PEP50

SKU : PEP50

Flow :1 M3/HR - 116.6 M3/HR

Head : 2.1 Meter - 162 Meter

Application :

Hot and cold water circulation
HVAC and cooling tower
Marine- Ballasting and Bilge
Booster and pressurization set
Irrigation and agriculture
Food and Chemical industry
Fire protection & fighting
Factory pumping

Specifications :
Models : PEP50-13, PEP50-16, PEP50-20, PEP50-26(H), PEP50-26(G), PEP50-32(H), PEP50-32(G)
Speed : 1450 & 2900 RPM (upon request 1750 & 3500 RPM)
Max Flow : 1944 LPM
Max Head : 162m
Power : 1.0 HP - 80 HP
Inlet/Outlet : 2.5" x 2"
Max Water Temperature : 85°C (105°C upon request)
Max Working Pressure : 1.0 MPa
Power Supply : Single Phase 220-240V, 50Hz (upon request 60Hz)
                                  Three Phase 380-420V, 50Hz (upon request 60Hz)
Insulation Class - F & B
Protection Class - IP54 & IP55
Duty - S1
Conveying medium : Clean water or liquid similar to clean water in physical property

Function, feature, installation and use :

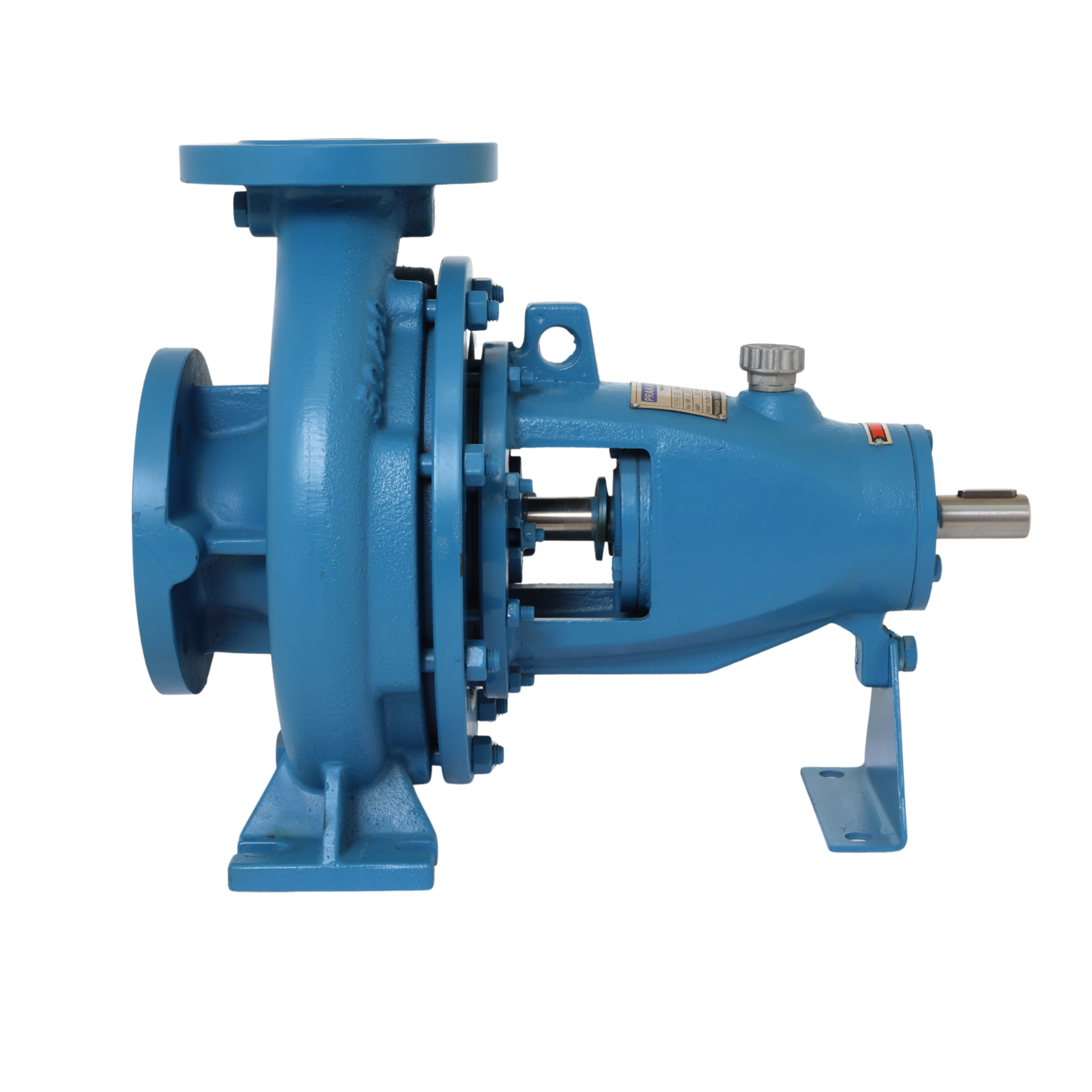

Prakash PEP series end suction centrifugal pumps are designed complying to BS EN733/DIN24255 standard. This Series of pumps are frame mounted pumps coupled with electric motors by flexible type of coupling and have a great advantages in interchangeable parts, high quality and low cost, wide applications in fire-fighting systems, air-condition systems, water treatment plants, water transport and supply.
