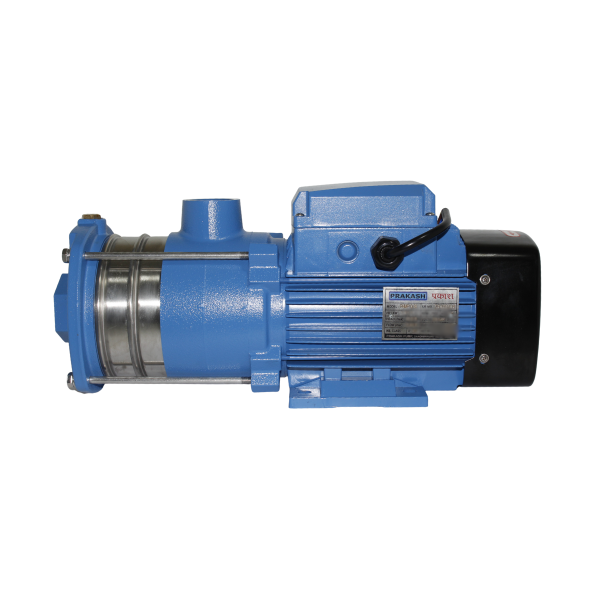

Prakash Horizontal Multistage Pump PHMP10-30
Frequency : 60Hz
Model : PHMP10-30
SKU : PHMP10-30
Flow :0 LPM - 267 LPM
Head : 17.5 Meter - 43 Meter
Application:
- Household water supply
- Equipment support
- Pipeline pressurization
- Garden watering
- Vegetable greenhouse watering
- Fish farming and poultry raising
- Industrial and mining
- Water supply and drainage of enterprises
- High-rise buildings
- Central air conditioner
- Centralized heating circulation system, etc.
Specifications :
Max Flow: 267 LPM
Max Head: 43 m
Speed: 3500 rpm
Power: 1.5kW / 2.0HP
Inlet/Outlet: 1.5" x 1.25"
Max Liquid Temperature: Up to 85°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IP54 or IPX4
Liquid pH: 4-10
Altitude: up to 1000 m
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | |
KW | HP | LPM | 0 | 67 | 100 | 133 | 167 | 200 | 233 | 267 | |||
PHMP10-30 / T | 1.5 | 2.0 | 1.5”x1.25” | Head (meters) | 43 | 42 | 41.5 | 39.5 | 36 | 32 | 25.5 | 17.5 | |
