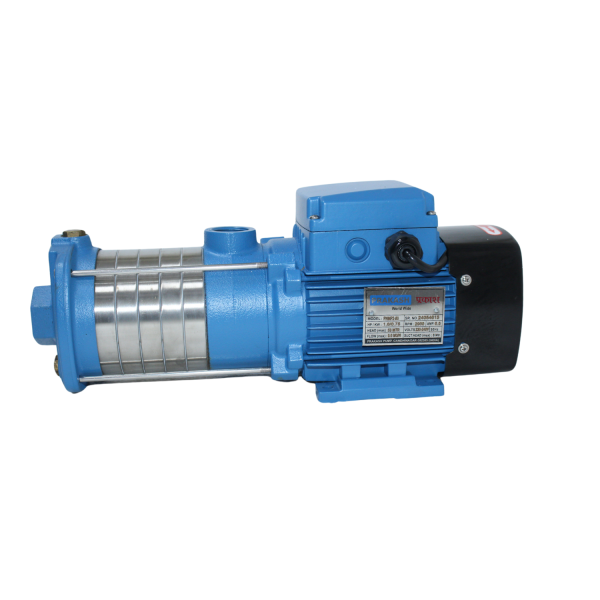

Prakash Horizontal Multistage Pump PHMP2-60
Frequency : 60Hz
Model : PHMP2-60
SKU : PHMP2-60
Flow :0 LPM - 75 LPM
Head : 37.5 Meter - 79 Meter
Application:
- Household water supply
- Equipment support
- Pipeline pressurization
- Garden watering
- Vegetable greenhouse watering
- Fish farming and poultry raising
- Industrial and mining
- Water supply and drainage of enterprises
- High-rise buildings
- Central air conditioner
- Centralized heating circulation system, etc.
Specifications :
Max Flow: 75 LPM
Max Head: 79 m
Speed: 3500 rpm
Power: 1.1kW / 1.5HP
Inlet/Outlet: 1" x 1"
Max Liquid Temperature: Up to 85°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IP54 or IPX4
Liquid pH: 4-10
Altitude: up to 1000 m
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4.5 | |
KW | HP | LPM | 0 | 17 | 26 | 33 | 41 | 50 | 60 | 75 | |||
PHMP2-60 | 1.1 | 1.5 | 1”x1” | Head (meters) | 79 | 75 | 71 | 66 | 62.5 | 57.5 | 51.1 | 37.5 | |
