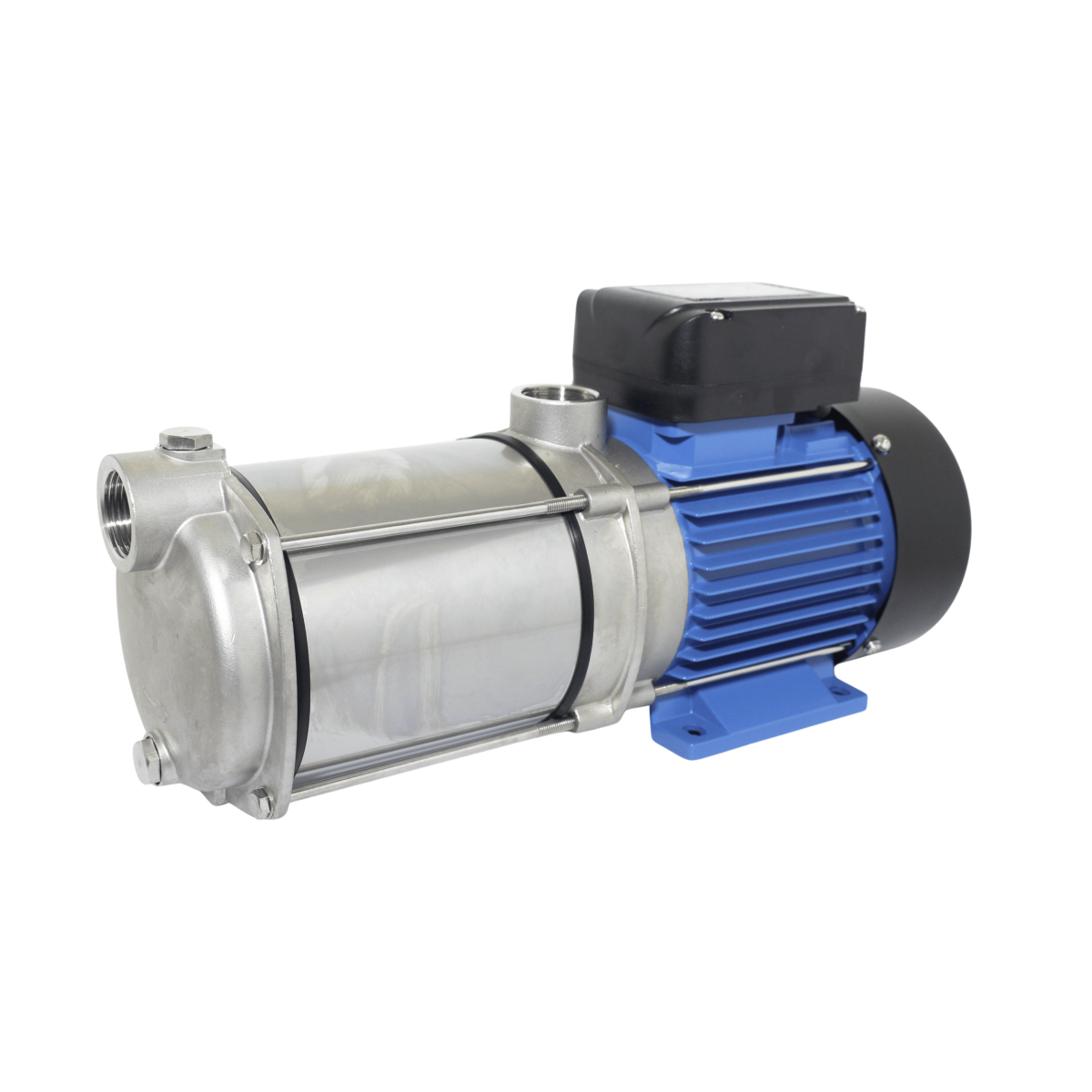

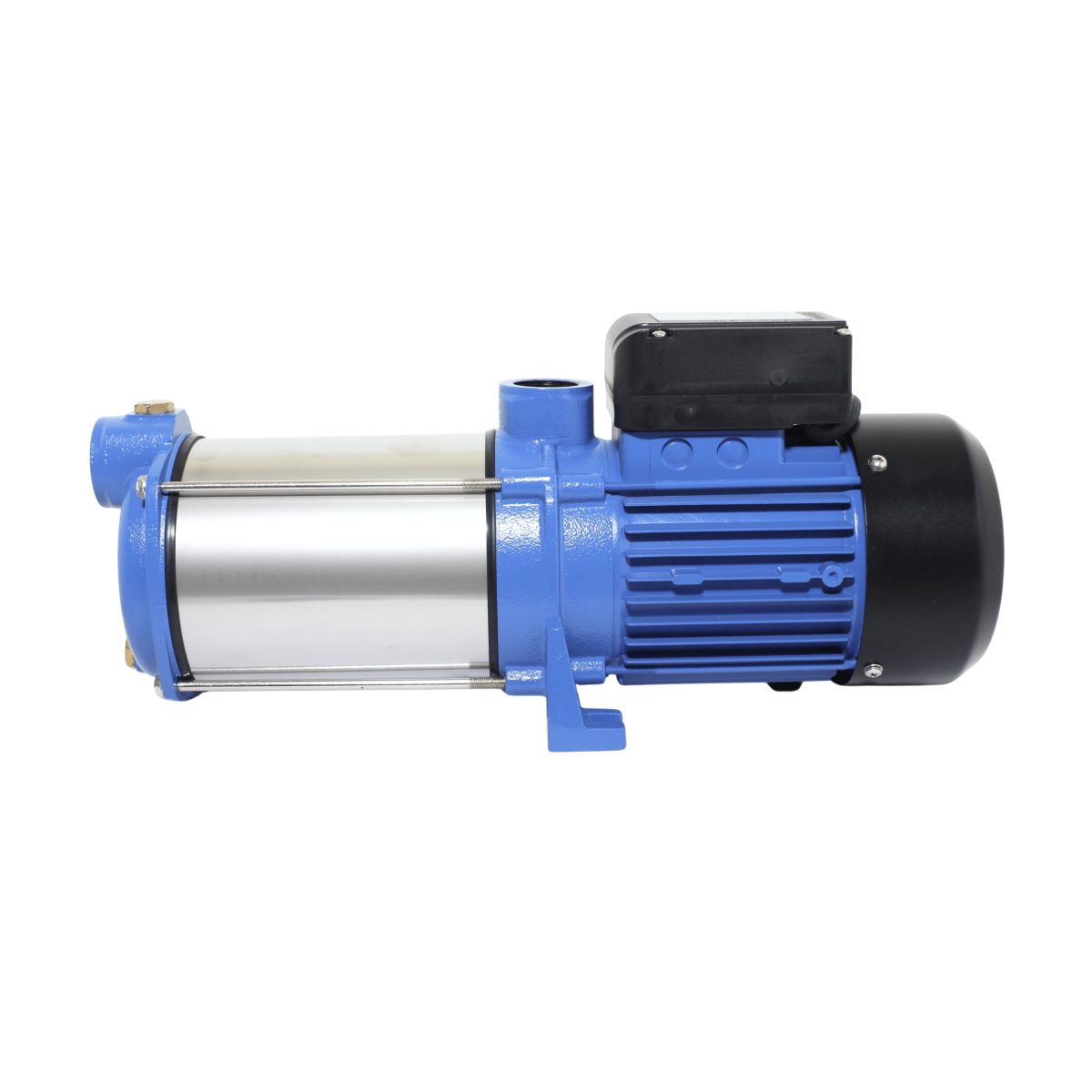

Prakash Horizontal Multistage Stainless Steel Pump PHMP60
Frequency : 60Hz
Model : PHMP60
SKU : PHMP60
Flow :0 LPM - 60 LPM
Head : 7 Meter - 40 Meter
Application:
- Household water supply
- Equipment support
- Pipeline pressurization
- Garden watering
- Vegetable greenhouse watering
- Fish farming and poultry raising
- Industrial and mining
- Water supply and drainage of enterprises
- High-rise buildings
- Central air conditioner
- Centralized heating circulation system, etc.
Specifications :
Max Flow: 60 LPM
Max Head: 30 m
Speed: 3500 rpm
Power: 0.6 kW- 0.75 kW
Voltage : 220-240V, 50Hz
Inlet/Outlet: 1" x 1"
Max Suction: 8m
Max Liquid Temperature: Up to 90°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IPX4
Liquid pH Value: 6-8
Altitude: < 1000 m
Thermal protector : in built (Single phase motor)
Pump Performance Chart :
| Model (Stainless Steel) | Power |
|
| M3/H | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | |
KW | HP | LPM | 0 | 10 | 20 | 30 | 40 | 50 | 60 | ||||
PHMP60-3 | PHMPSS60-3 | 0.6 | 0.8 | 1”x1" | Head (m) | 30 | 29 | 26 | 22 | 17 | 12 | 7 | |
| PHMP60-4 | PHMPSS60-4 | 0.75 | 1.0 | 1"X1" | Head (m) | 40 | 39 | 35 | 31 | 25 | 18 | 10 | |
