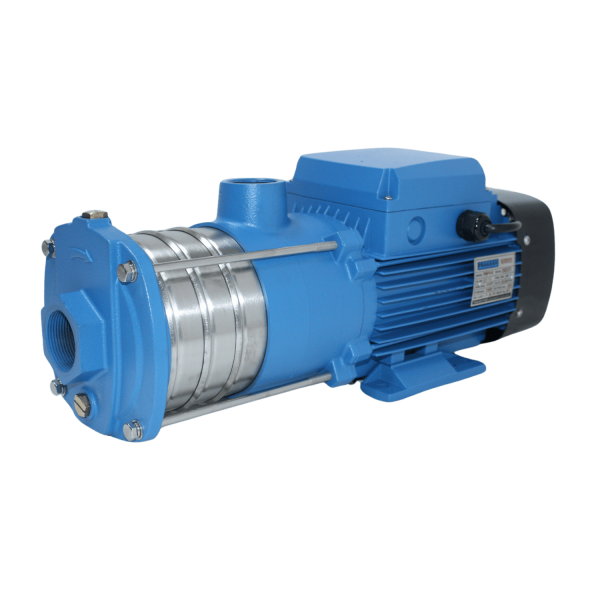

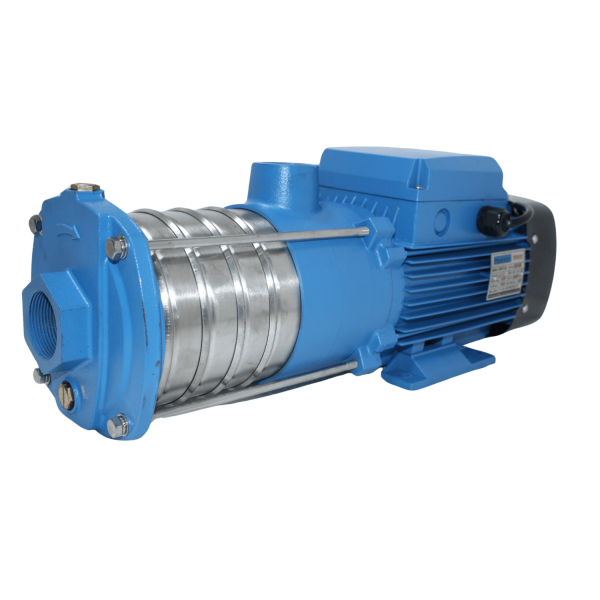

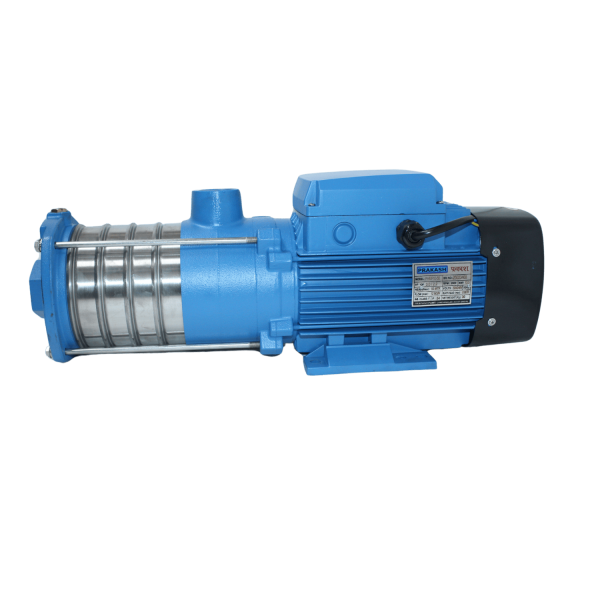

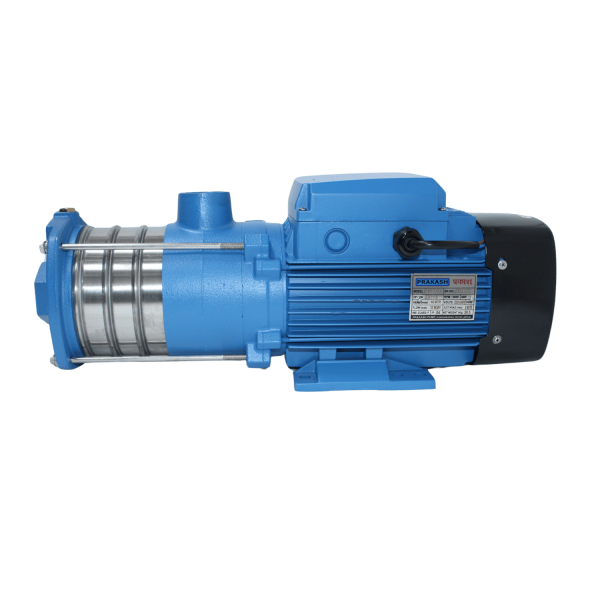

Prakash Horizontal Multistage Pump PHMP10
Model : PHMP10
SKU : PHMP10
Flow :1 LPM - 200 LPM
Head : 5.8 Meter - 50 Meter
Application:
- Household Water supply
- Equipment support
- Pipeline Pressurization
- Garden Watering
- Vegetable Greenhouse watering
- Fish farming and poultry raising
- Industrial and mining
- Water Supply and drainage of enterprises
- High-Rise buildings
- Central air conditioner
- Centralized heating circulation system etc.
Specifications :
Max Flow : 200 LPM
Max Head: 50 m
Speed : 2900 rpm
Power : 0.75-2.2 Kw
Inlet/Outlet : 1.5" x 1.25"
Max Suction : 8m
Voltage : 220-240V, 50Hz
380-420V, 50Hz
Max Liquid Temperature : +85°C
Max Ambient Temperature Up to +40°C
Insulation Class : F
Protection class : IP54 or IPX4
Liquid pH value : 4-10
Altitude : up to 1000 m
Thermal protector : in built (Single phase motor)
|
Model (Cast Iron) |
Model (Stainless Steel) |
Power |
Inlet/ Outlet |
Q |
M³/H |
0 |
6.0 |
7.0 |
8.0 |
9.0 |
10.0 |
11.0 |
12.0 |
|
|
KW |
HP |
LPM |
0 |
100 |
117 |
133 |
150 |
167 |
183 |
200 |
||||
|
PHMP10-10 |
PHMPSS10-10 |
0.75 |
1.0 |
1.5”x 1.25” |
Head (Meters) |
10 |
9.1 |
8.7 |
8.2 |
7.7 |
6.8 |
5.8 |
|
|
|
PHMP10-20 |
PHMPSS10-20 |
0.75 |
1.0 |
20 |
17.9 |
17.1 |
16.3 |
15.3 |
14.0 |
12.5 |
10.6 |
|||
|
PHMP10-30 |
PHMPSS10-30 |
1.1 |
1.5 |
30 |
27.1 |
26.3 |
24.9 |
23.4 |
21.4 |
19.3 |
16.9 |
|||
|
PHMP10-40 |
PHMPSS10-40 |
1.5 |
2.0 |
40 |
38.6 |
37.6 |
35.9 |
33.9 |
31.2 |
28.2 |
24.6 |
|||
|
PHMP10-50 |
PHMPSS10-50 |
2.2 |
3.0 |
50 |
47.8 |
46.4 |
44.4 |
42.2 |
39.5 |
35.9 |
31.1 |
|||
