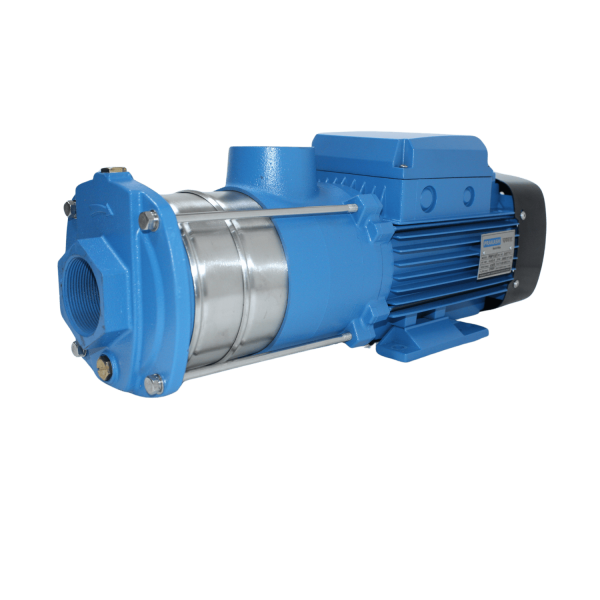

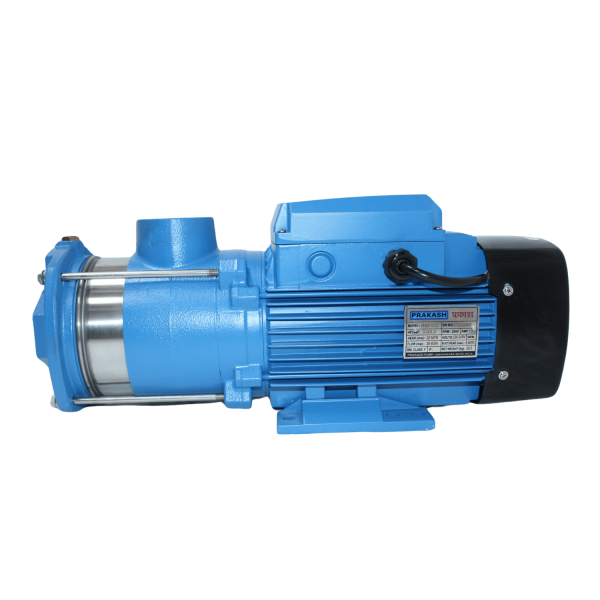

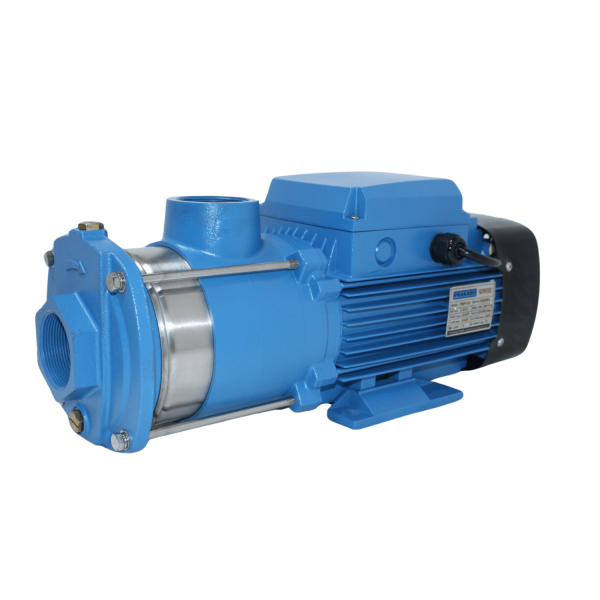

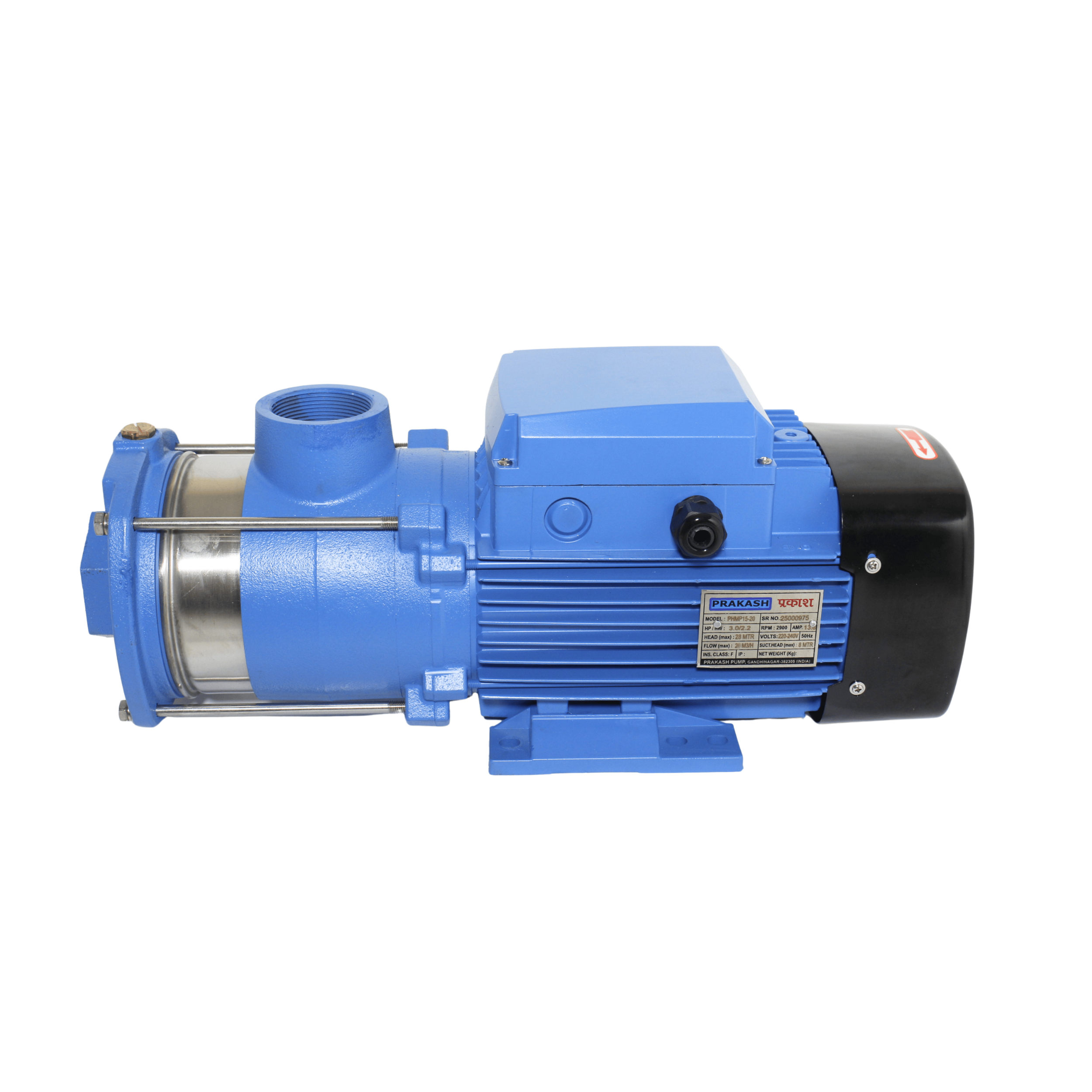

Prakash Horizontal Multistage Stainless Steel Pump PHMP15
Frequency : 50Hz
Model : PHMP15
SKU : PHMP15
Flow :1 LPM - 350 LPM
Head : 8.2 Meter - 55 Meter
Application:
- Household Water supply
- Equipment support
- Pipeline Pressurization
- Garden Watering
- Vegetable Greenhouse watering
- Fish farming and poultry raising
- Industrial and mining
- Water Supply and drainage of enterprises
- High-Rise buildings
- Central air conditioner
- Centralized heating circulation system etc.
Specifications :
Max Flow : 350 LPM
Max Head: 55 m
Speed : 2900 rpm
Power : 1.1-4.0 Kw
Inlet/Outlet : 2" x 2"
Max Suction : 8m
Voltage : 220-240V, 50Hz
380-420V, 50 Hz
Max Liquid Temperature : Up to 90°C
Max Ambient Temperature : Up to 40°C
Insulation Class : F
Protection class : IPX4
Liquid pH value : 4-10
Altitude : < 1000 m
Thermal protector : in built (Single phase motor)
|
(Cast Iron) |
(Stainless Steel) |
|
Outlet |
|
M³/H |
0 |
9.0 |
12.0 |
15.0 |
18.0 |
21.0 |
|
|
KW |
HP |
LPM |
0 |
150 |
200 |
250 |
300 |
350 |
||||
|
PHMP15-10 |
PHMPSS15-10 |
1.1 |
1.5 |
|
|
14 |
12.4 |
11.6 |
10.6 |
9.4 |
8.2 |
|
|
PHMP15-20 | PHMPSS15- 20 |
2.2 |
3.0 |
28 |
25.6 |
24.1 |
22.7 |
21.1 |
18.8 |
|||
|
PHMP15-30 |
PHMPSS15- 30 |
3.0 |
4.0 |
42 |
38.7 |
36.9 |
34.9 |
31.9 |
28.5 |
|||
|
PHMP15-40 |
PHMPSS15- 40 |
4.0 |
5.5 |
55 |
51.8 |
49.7 |
46.8 |
42.9 |
38.3 |
|||
