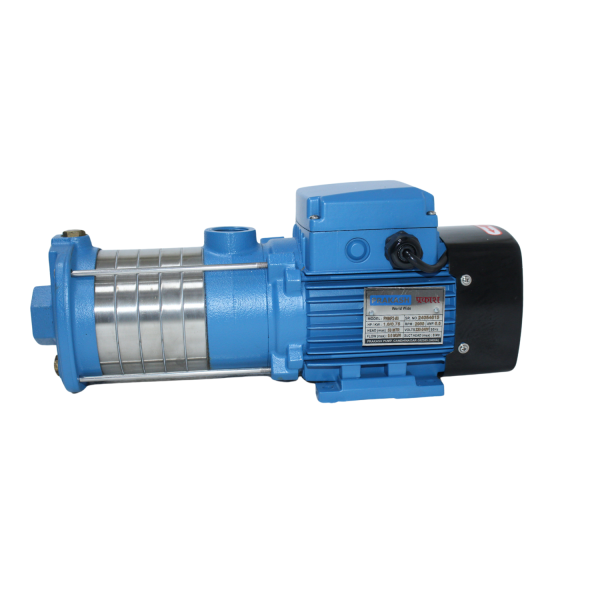

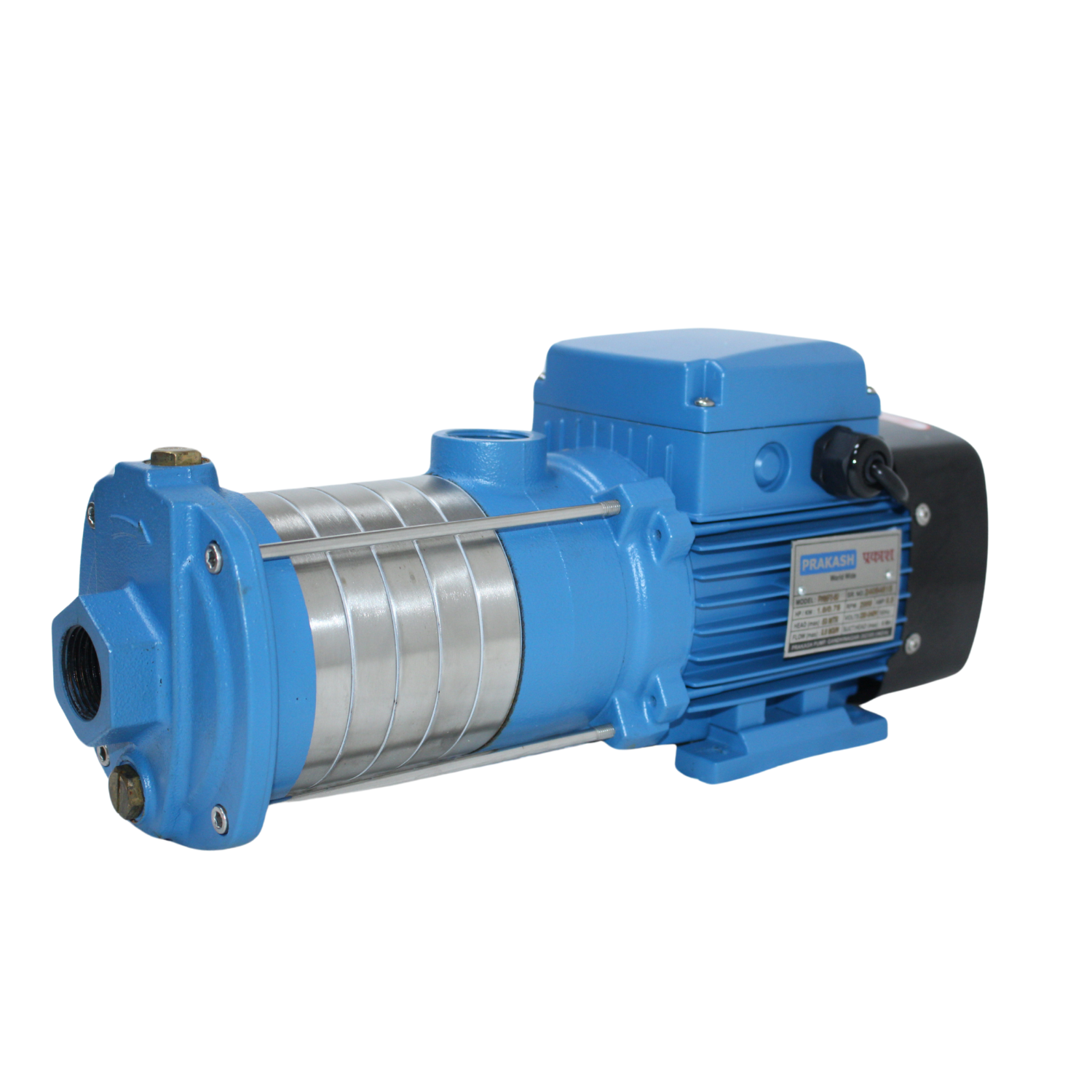

Model : PHMP2

SKU : PHMP2

Flow :1 LPM - 60 LPM

Head : 8 Meter - 53 Meter

Application:

• Household Water supply
• Equipment support
• Pipeline Pressurization
• Garden Watering
• Vegetable Greenhouse watering
• Fish farming and poultry raising
• Industrial and mining
• Water Supply and drainage of enterprises
• High-Rise buildings
• Central air conditioner
• Centralized heating circulation system etc.

Specifications :
Max Flow : 60 LPM
Max Head: 53 m
Speed : 2900 rpm
Power : 0.37-0.75 Kw
Inlet/Outlet : 1" x 1"
Max Suction : 8m
Voltage : 220-240V, 50Hz
Max Liquid Temperature : +85°C
Max Ambient Temperature Up to +40°C
Insulation Class : F
Protection class : IP54 or IPX4
Liquid pH value : 4-10
Altitude : up to 1000 m
Thermal protector : in built (Single phase motor)

Model (Cast Iron)	Model (Stainless Steel)	Power		Inlet/ Outlet	Q	M³/H	0	0.6	1.2	1.8	2.4	3.0	3.6
		KW	HP			LPM	0	10	20	30	40	50	60
PHMP2-20	PHMPSS2-20	0.37	0.5	1” x 1”	Head (Meters)		18	16	15	13	12	10	8
PHMP2-30	PHMPSS2-30	0.37	0.5				27	24	22	20	18	16	12
PHMP2-40	PHMPSS2-40	0.55	0.75				35	33	30	26	24	21	16
PHMP2-50	PHMPSS2-50	0.55	0.75				45	40	37	33	30	24	19
PHMP2-60	PHMPSS2-60	0.75	1.0				53	50	45	40	36	30	23
