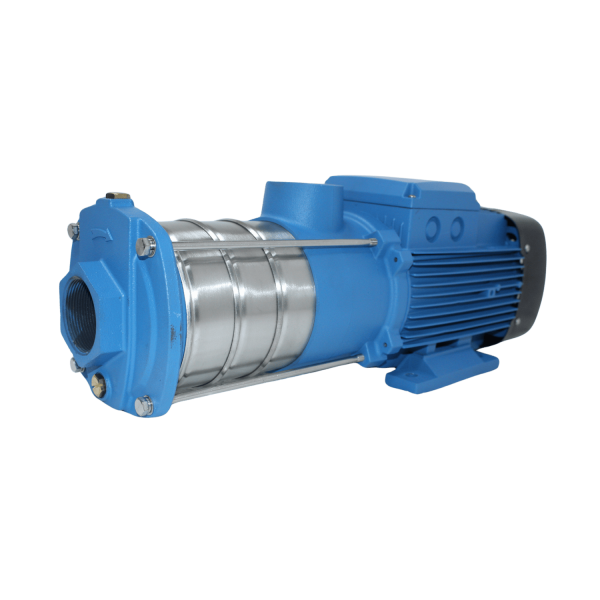

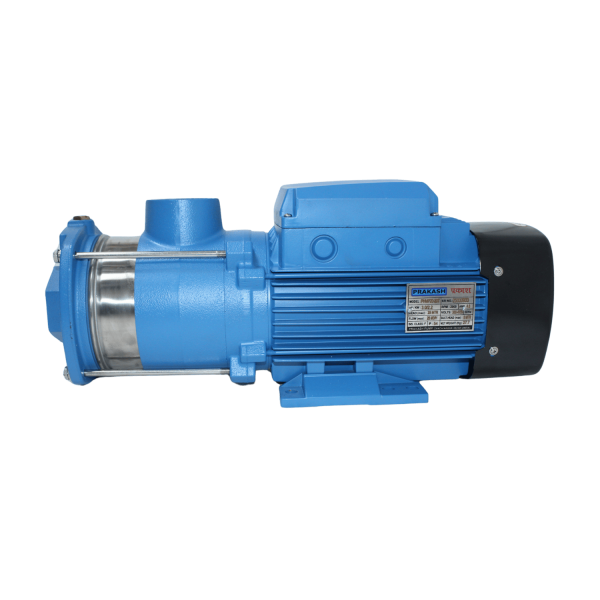

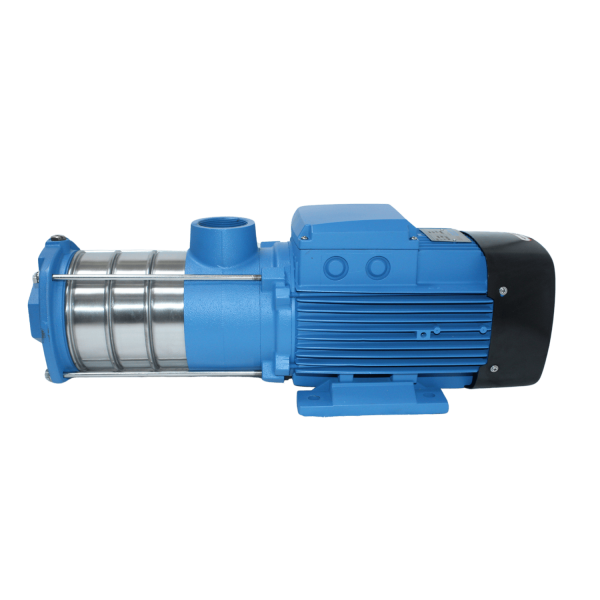

Model : PHMP20

SKU : PHMP20

Flow :1 LPM - 467 LPM

Head : 5.7 Meter - 56 Meter

Application:

• Household Water supply
• Equipment support
• Pipeline Pressurization
• Garden Watering
• Vegetable Greenhouse watering
• Fish farming and poultry raising
• Industrial and mining
• Water Supply and drainage of enterprises
• High-Rise buildings
• Central air conditioner
• Centralized heating circulation system etc.

Specifications :
Max Flow : 467 LPM
Max Head: 56 m
Speed : 2900 rpm
Power : 1.1-4.0 Kw
Inlet/Outlet : 2" x 2"
Max Suction : 8m
Voltage : 220-240V, 50Hz
                       380-420V, 50Hz
Max Liquid Temperature : +85°C
Max Ambient Temperature Up to +40°C
Insulation Class : F
Protection class : IP54 or IPX4
Liquid pH value : 4-10
Altitude : up to 1000 m
Thermal protector : in built (Single phase motor)

Model (Cast Iron)	Model (Stainless Steel)	Power		Inlet/ Outlet	Q	M³/H	0	12	16	20	24	28
		KW	HP			LPM	0	200	267	333	400	467
PHMP20-10	PHMPSS20-10	1.1	1.5	2” x 2”	Head (Meters)		13	12.1	10.8	9.5	7.8	5.7
PHMP20-20	PHMPSS20-20	2.2	3.0				28	26.1	24.4	22.4	19.8	17.2
PHMP20-30	PHMPSS20-30	4.0	5.5				42	39.9	38	35.5	31.4	26.9
PHMP20-40	PHMPSS20-40	4.0	5.5				56	52.7	50.1	45.9	40.3	34
