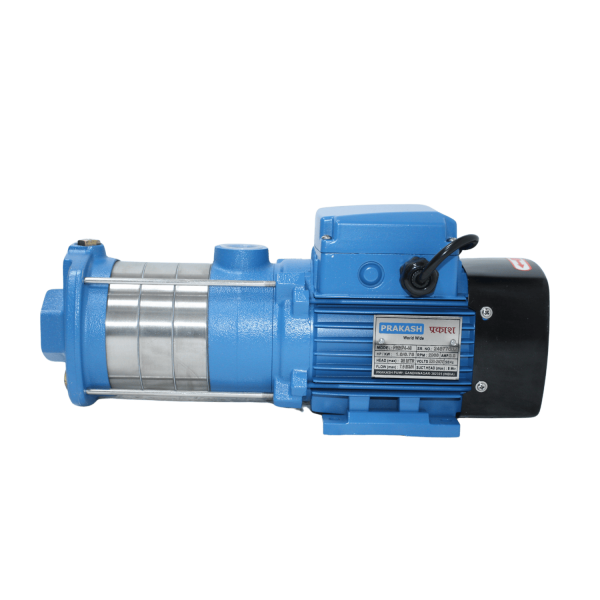

Model : PHMP4

SKU : PHMP4

Flow :1 LPM - 117 LPM

Head : 8 Meter - 58 Meter

Application:

• Household Water supply
• Equipment support
• Pipeline Pressurization
• Garden Watering
• Vegetable Greenhouse watering
• Fish farming and poultry raising
• Industrial and mining
• Water Supply and drainage of enterprises
• High-Rise buildings
• Central air conditioner
• Centralized heating circulation system etc.

Specifications :
Max Flow : 117 LPM
Max Head : 58 m
Speed : 2900 rpm
Power : 0.55-1.1 Kw
Inlet/Outlet : 1" x 1"
Max Suction : 8m
Voltage : 220-240V, 50Hz
Max Liquid Temperature : +85°C
Max Ambient Temperature Up to +40°C
Insulation Class : F
Protection class : IP54 or IPX4
Liquid pH value : 4-10
Altitude : up to 1000 m
Thermal protector : in built (Single phase motor)

Model (Cast Iron)	Model (Stainless Steel)	Power		Inlet/ Outlet	Q	M³/H	0	1.0	2.0	3.0	4.0	5.0	6.0	7.0
		KW	HP			LPM	0	17	33	50	67	83	100	117
PHMP4-20	PHMPSS4-20	0.55	0.75	1” x 1”	Head (Meters)		18	17	16	15	13	12	10	8
PHMP4-30	PHMPSS4-30	0.75	1.0				28	27	25	23	21	19	16	13
PHMP4-40	PHMPSS4-40	0.75	1.0				38	36	34	32	28	26	22	17
PHMP4-50	PHMPSS4-50	1.1	1.5				48	46	43	40	36	33	28	21
PHMP4-60	PHMPSS4-60	1.1	1.5				58	55	52	48	43	39	33	26
