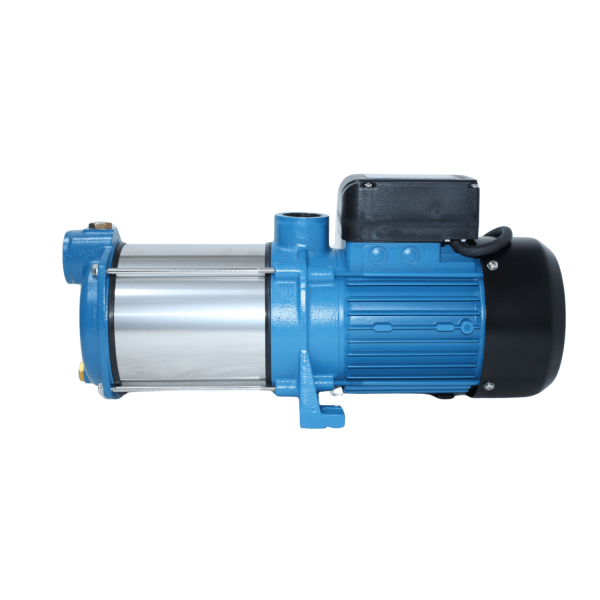

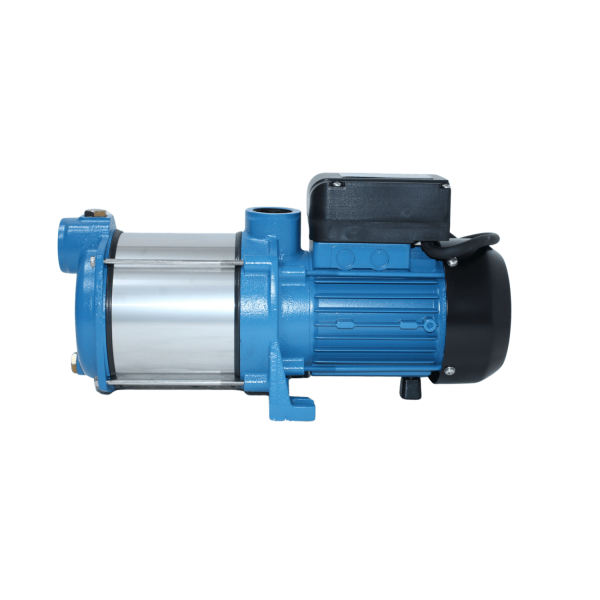

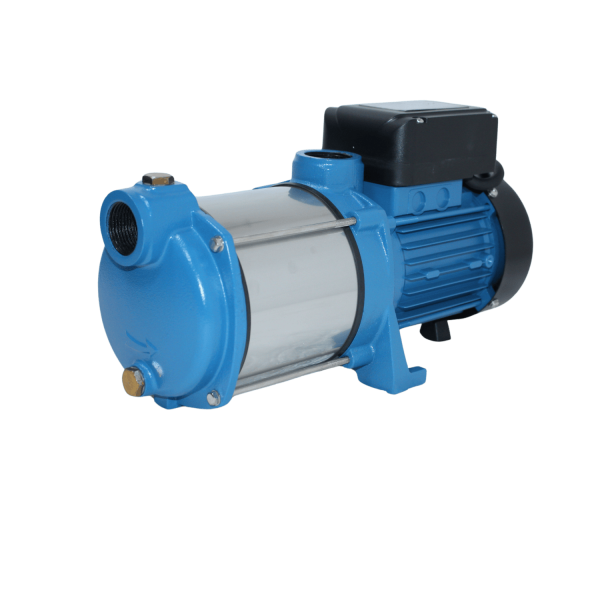

Model : PHMP60

SKU : PHMP60

Flow :1 LPM - 60 LPM

Head : 4 Meter - 60 Meter

Application:

• Household Water supply
• Equipment support
• Pipeline Pressurization
• Garden Watering
• Vegetable Greenhouse watering
• Fish farming and poultry raising
• Industrial and mining
• Water Supply and drainage of enterprises
• High-Rise buildings
• Central air conditioner
• Centralized heating circulation system etc.

Specifications :
Max Flow : 60 LPM
Max Head : 60 m
Speed : 2900 rpm
Power : 0.37-1.0 Kw
Inlet/Outlet : 1" x 1"
Max Suction : 8m (Self priming)
Voltage : 220-240V, 50Hz
Max Liquid Temperature : +85°C
Max Ambient Temperature Up to +40°C
Insulation Class : F
Protection class : IP54 or IPX4
Liquid pH value : 4-10
Altitude : up to 1000 m
Thermal protector : in built (Single phase motor)

Model (Cast Iron)	Model (Stainless Steel)	Power		Inlet/ Outlet	Q	M³/H	0	0.6	1.2	1.8	2.4	3.0	3.6
		KW	HP			LPM	0	10	20	30	40	50	60
PHMP60-2	PHMPSS60-2	0.37	0.5	1” x 1”	Head (Meters)		20	19	17	14	11	7	4
PHMP60-3	PHMPSS60-3	0.6	0.8				30	29	26	22	17	12	7
PHMP60-4	PHMPSS60-4	0.75	1.0				40	39	35	31	25	18	10
PHMP60-5	PHMPSS60-5	0.85	1.15				50	48	44	38	31	24	15
PHMP60-6	PHMPSS60-6	1.0	1.3				60	58	53	46	37	28	17
