Model : PHMB

SKU : PHMB

Flow :1 M3/HR - 7 M3/HR

Head : 1 Meter - 58 Meter

Applications:

The appropriate applications are as follows:

• Hotels
• Hospitals
• High-rise residential apartments
• High-rise commercial buildings
• Shopping centers
• Low-rise buildings
• Cold water boosting
• Rainwater harvesting
• Municipal water supply
• Dust suppression
• Agricultural systems
• Dairy
• Irrigation
• Industrial water supply
• Mining civil services

Description :

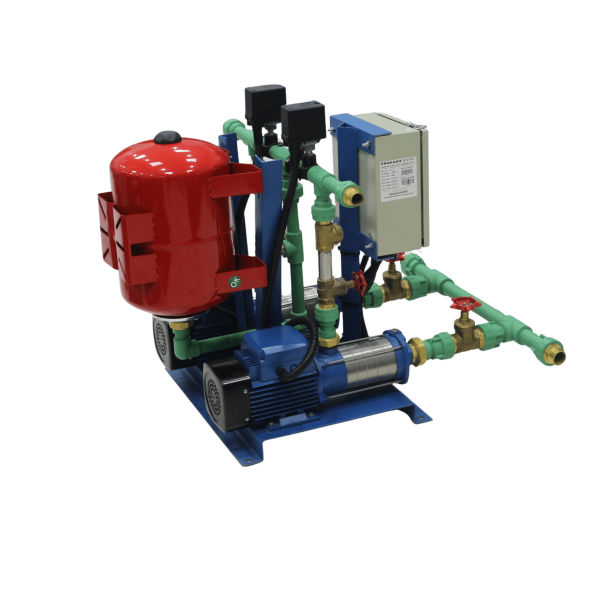

The Duty Standby Booster system is mainly use for pressure boosting and water transfer. The pressure booster system is a fully integrated package. There are many applications for different purposes and maintain constant pressure for many useful applications.

Benefits & Ease of Use :

The system consists of parallel pump set, pump controllers, and the necessary mechanical fittings. It is suitable for a 2, 3 or 4 pumps of any type and the unique electronic hydraulic control ensures each pump operates at its maximum performance level by allocating optimal power to each pump. The duty stands by and parallel pump sets has been specifically designed from the ground up based on feedback. The system is simple to use and parallel pumps running is maintaining the same pressure at same flow.

Model	Power		Phase	Inlet/Outlet	Max. Flow (m³/h)	Max. Head (m)	Max. Suction (m)
	Kw	Hp
PHMB2-30	0.37	0.5	1 & 3 Phase	1″x1″	3.6	27	8
PHMB2-50	0.55	0.75		1″x1″	3.6	45
PHMB2-60	0.75	1		1″x1″	3.6	53
PHMB4-30	0.75	1		1.25″x1″	7	28
PHMB4-60	1.1	1.5		1.25″x1″	7	58

Abbreviation : PHMB : Prakash Horizonal Multistage Stainless Steel Booster System
