Model : PIM-1S4/2 To PIM-5.5S2/4

SKU : PIM-1S4/2 To PIM-5.5S2/4

Flow :0 M3/HR - 0 M3/HR

Head : 0 Meter - 0 Meter

Applications :

Industrial
Domestic and agriculture
Machinery equipment
Multipurpose uses

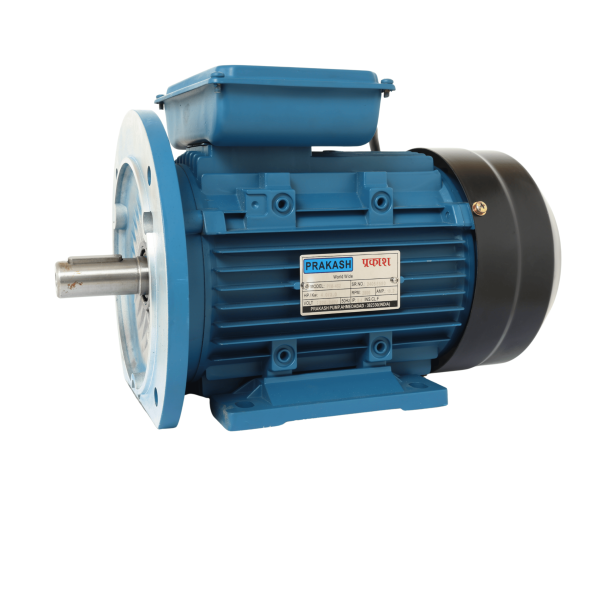

Motor Details :
Models : PIM-1S4/2 To PIM-5.5S2/4
Power : 0.75Kw - 4.0Kw / 1.0HP - 5.5HP
Voltage : 220-240V, 50Hz (Single Phase)
Speed : 1400 & 2900 RPM
2 & 4 Pole induction motor
Insulation Class : B & F
Protection Class  : IP54
Center height : 80-112mm
Duty : S1
Motor IE1, IE2 and IE3 for Optimum efficiency
Mounting type : B3 frame with feet (end- shield B5 are available on request)
Flange type : B3 (B35 on request)

Motor Feature :

High Capacity, Strong starting torque, high power factor and high efficiency, safety and reliability in running. simple structure easy maintenance and easy installation. It possesses frame No. and capacity as three-phase asynchronous motors. These motors are of totally enclosed fan-cooled structure and IC411 method of cooling. The mounting dimensions of the motors are all in conformity with IEC standards. Motors are suitable for machines and equipment’s such as full load start.
