Prakash-Sewage-Pump

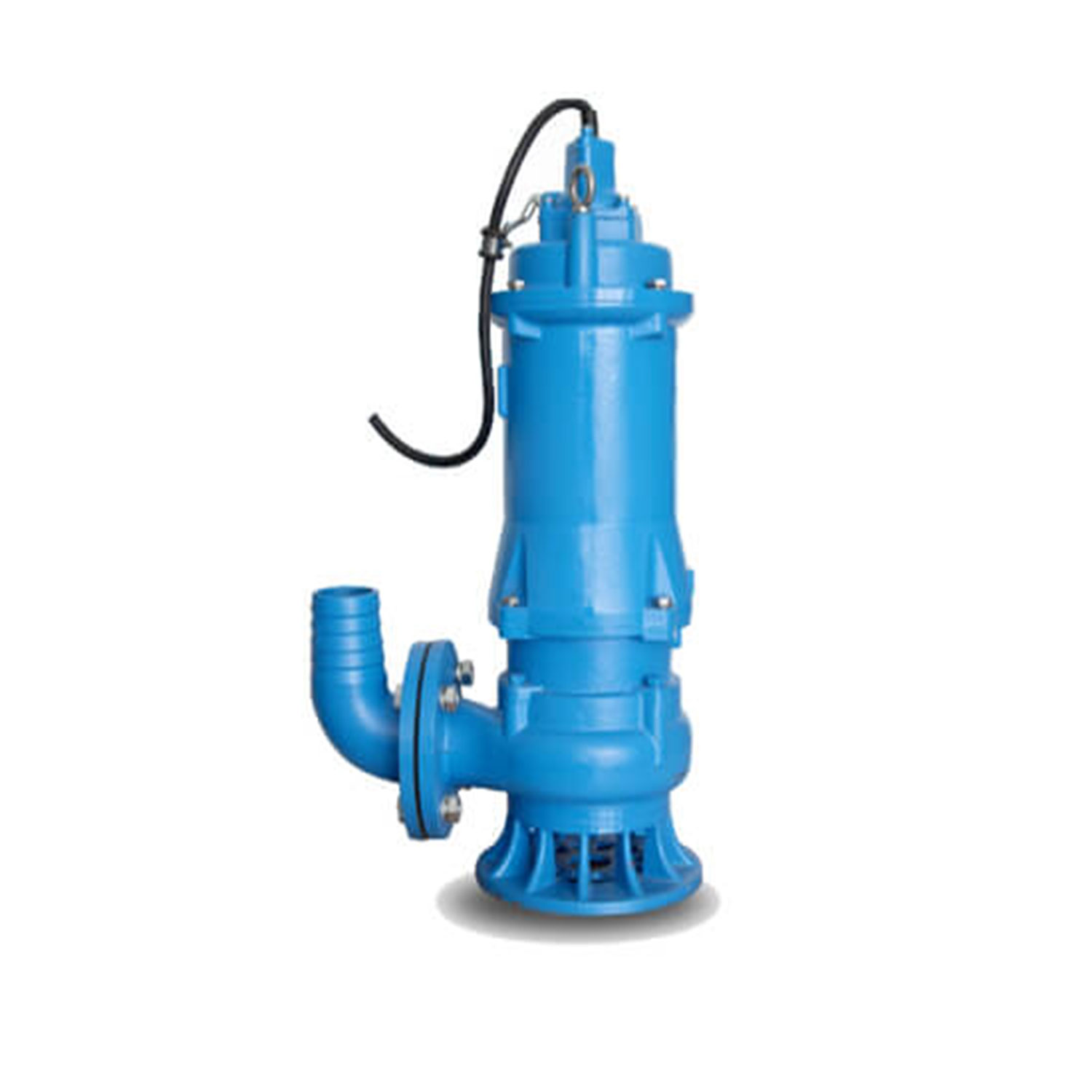

PRAKASH SEWAGE PUMP

For Product Price WhatsApp Us

Add to Wishlist

SKU: PSP7-9-0.37F Category: Sewage Pumps

Download Brochure

Applications

Municipal Project
Industrial building
Mining
Civil engineering

Specifications

Water temperature: up to 35°C
PH: 6.5 to 8.5
Density of liquid: 1.3g/cm³
Power: 0.75 to 7.5Kw
Insulation Class: F
Protection Class: IP 68
Capacity: Up to 175 m³ /h
Head: Up to 43m
Power Supply: single phase 220V, ±10%,50 Hz; three phase 380V, ± 10%,50Hz
Maximum immersion depth: 10m
Cable: Length 8mtr

Model

Model	Power		Voltage	Outlet Inch	Guide Rial	Rated Capacity	Rated Head	Impeller Passage	N.W(Kg)
Model	KW	HP	Voltage	Outlet Inch	Guide Rial	Rated Capacity	Rated Head	Impeller Passage	N.W(Kg)
PSP15-15-1.5	1.5	2	380	2.5	50-65	15	15	25	25
PSP25-17-2.2	2.2	3		2.5	65-65	25	17	25	44
PSP40-9-2.2	2.2	3		3	65-80	40	9	30	45
PSP15-26-3	3	4		2	50-50	15	26	25	50
PSP25-22-3	3	4		2.5	65-65	25	22	30	50
PSP40-13-3	3	4		3	80-80	40	13	30	52
PSP40-18-4	4	5.5		3	80-80	40	18	30	65
PSP60-13-4	4	5.5		4	80-100	60	13	30	65
PSP15-40-5.5	5.5	7.5		2	50-50	15	40	20	73
PSP30-30-5.5	5.5	7.5		3	80-80	30	30	30	75
PSP45-22-7.5	7.5	10		4	100-100A	45	22	30	123
PSP100-10-7.5	7.5	10		6	150-150	100	10	40	123

Model	Power		Outlet	Q	US GPM	0	22	44	66	88	110	132	154	176	198	220	242	264	286	308	330	352
	Power				M³/H	0	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80
	KW	HP			LPM	0	83	167	250	333	417	500	583	667	750	834	917	1000	1084	1167	1250	1334
PSP15-15-1.5	1.5	2	2.5	H(M)		20	18.5	17.5	16	15	13	11.5	9.5
PSP25-17-2.2	2.2	3	2.5			25	23	22	20.5	19	17	15	12.5	10
PSP40-9-2.2	2.2	3	3			16	15.5	14.5	13.5	12.5	11.5	11	10	8.5	7	6	5	4	2.5
PSP15-26-3	3	4	2			29	28	27.5	26	24.5	22.5	21	19	17.5	15.5	14
PSP25-22-3	3	4	2.5			27.5	26	25	24	22.5	21	19	17	15	12.5	10
PSP40-13-3	3	4	3			21	19.5	18.5	17	15.5	14	13	12	11	10	9	8	7	5.5	4
PSP40-18-4	4	5.5	3			23	23	22.5	22	21	20	19.5	18	17	16	15	13.5	12	10.5	9	7.5
PSP60-13-4	4	5.5	4			23	22.5	22	21.5	20.5	19.5	18.5	18	17	16	15	14	12.5	10.5	9	7.5	6
PSP15-40-5.5	5.5	7.5	2			43	42.5	41	39.5	38	36.5	34.5	32.5	30.5	28	25
PSP30-30-5.5	5.5	7.5	3			35	34	33.5	33	32.5	31.5	30	28	25	22	16	4
PSP45-22-7.5	7.5	10	4			28	27.5	27	26.5	26	25	24	23.5	22.5	21.5	20.5	19	18	16	14	10.5

Model	Power		Outlet	Q	US GPM	0	110	220	330	440	550	661	771
	Power				M³/H	0	25	50	75	100	125	150	175
	KW	HP			LPM	0	417	834	1250	1667	2084	2501	2917
PSP100-10-7.5	7.5	10	6	H(M)		15.5	15	14	12	10	8	6.5	5
