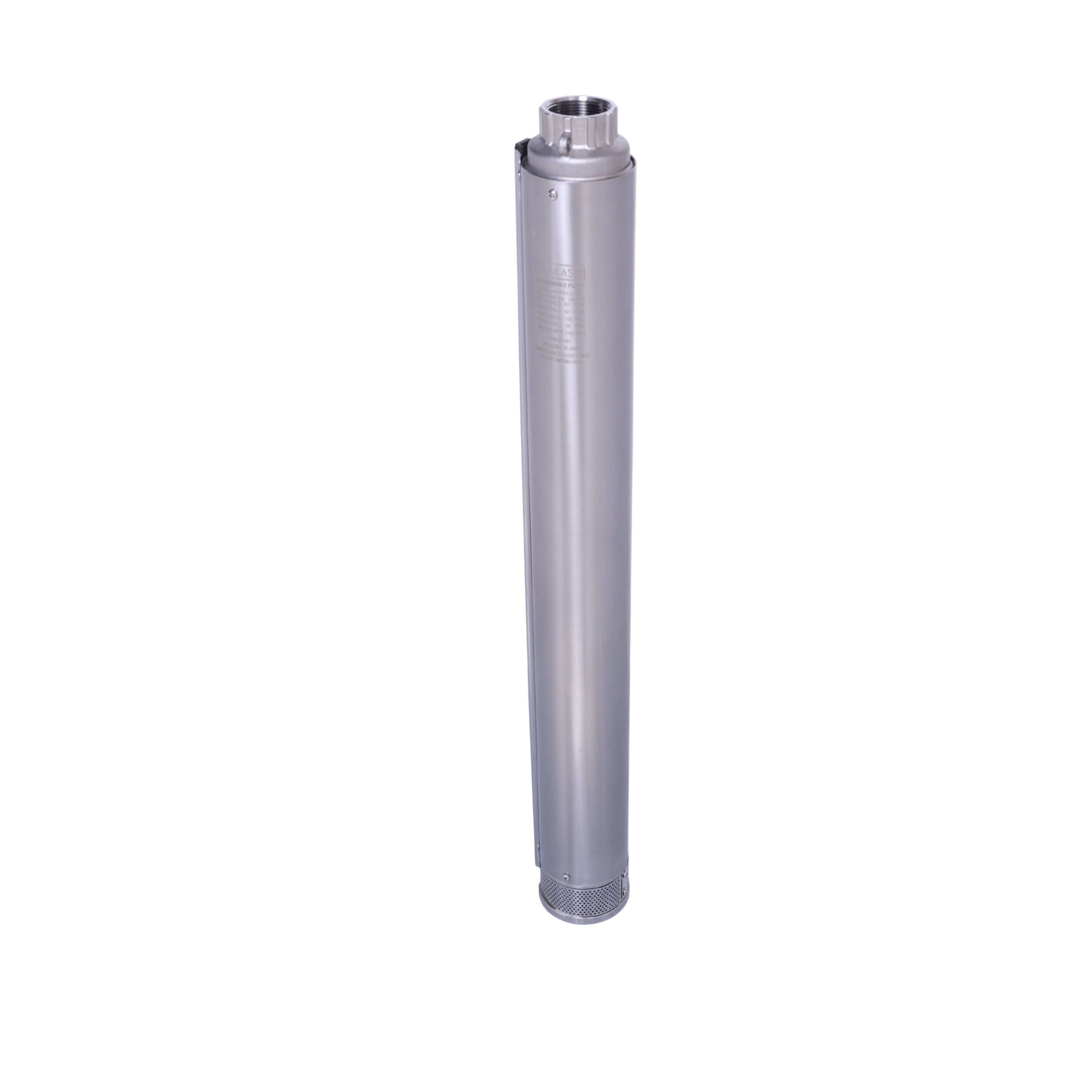

Model : SSFP6

SKU : SSFP6

Flow :1 LPM - 100 LPM

Head : 18 Meter - 375 Meter

Application

• Ground water supply to waterworks
• Irrigation in horticulture and agriculture
• Ground water lowering
• Pressure boosting
• Water treatment
• Fire fighting application
• Civil and industrial application


Specification :

• Power : 0.75 Kw - 5.5 Kw / 1 HP - 7.5 HP
• Max Flow : up to 100LPM
• Head : up to 375m
• Speed : 2900 RPM
• Water temperature : up to 35°C
• Minimum internal diameter of well : 4” Ø100mm.
• The solids in the water is less than 0.02% (heavy proportion)
• PH: 6.5 – 8.0



  Installation and use :

  • Pump sizes for connecting to motor according to NEMA standards.
  • Manufactured From corrosion resistant materials for long life impellers, diffuser, and check valve are thermoelastic for corrosion-resistance.
  • Specific impeller material selection ensures optimal performance in sandy bores.
  • This type models feature independently floating centrifugal impellers to provide easy starting and long life automatically adjusting to match pumping conditions for various application.
  • Heavy duty stainless steel Inner and outer shell providing protection and accurate alignment of internal components.
  • High quality shaft bearings providing low friction and high wear resistance.
  • Strong stainless steel drive shaft ensures positive impeller drive and longer life.



  Bore  Pump  Model	KW	HP	Outlet (inch)	H (mm)	L (mm)	Net Weight (Kg)		Q	M3H	0	2.1	2.4	2.7	3.0	3.6	4.2	4.8	5.4	6.0
  						H	L		LPM	0	35	40	45	50	60	70	80	90	100
  SSFP6-0.75-88	0.75	1	1.25	367	745	3.1	12.1	H  Meters		51	47	46	44	43	39	35	30	24	18
  SSFP6-1.1-1212	1.1	1.5		467	909	4.0	15.0			77	72	71	69	68	63	57	49	41	31
  SSFP6-1.5-1617	1.5	2		567	1039	4.8	17.2			102	98	96	94	92	86	77	68	57	46
  SSFP6-2.2-2425	2.2	3	1.5	805	1322	6.7	21.5			151	142	139	136	132	122	111	97	80	62
  SSFP6-4-4444	4.0	5.5		1305	1907	11.1	30.1			278	265	260	254	247	230	210	187	159	127
  SSFP6-5.5-5960	5.5	7.5		1756	2502	14.7	42.0			375	354	347	340	330	310	282	250	210	167
