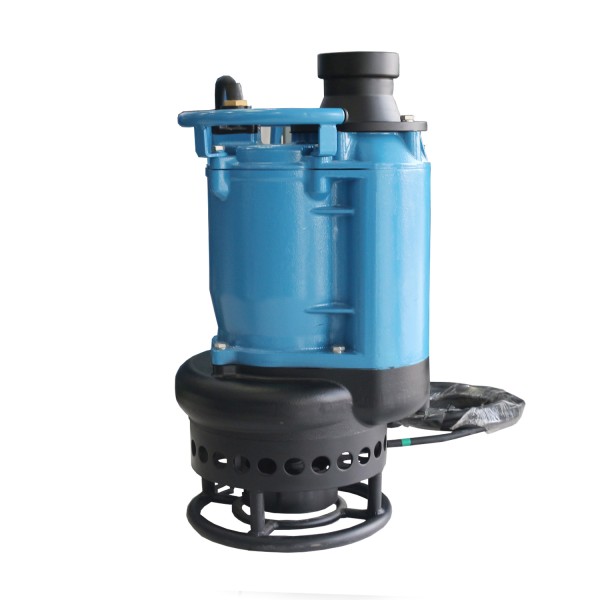

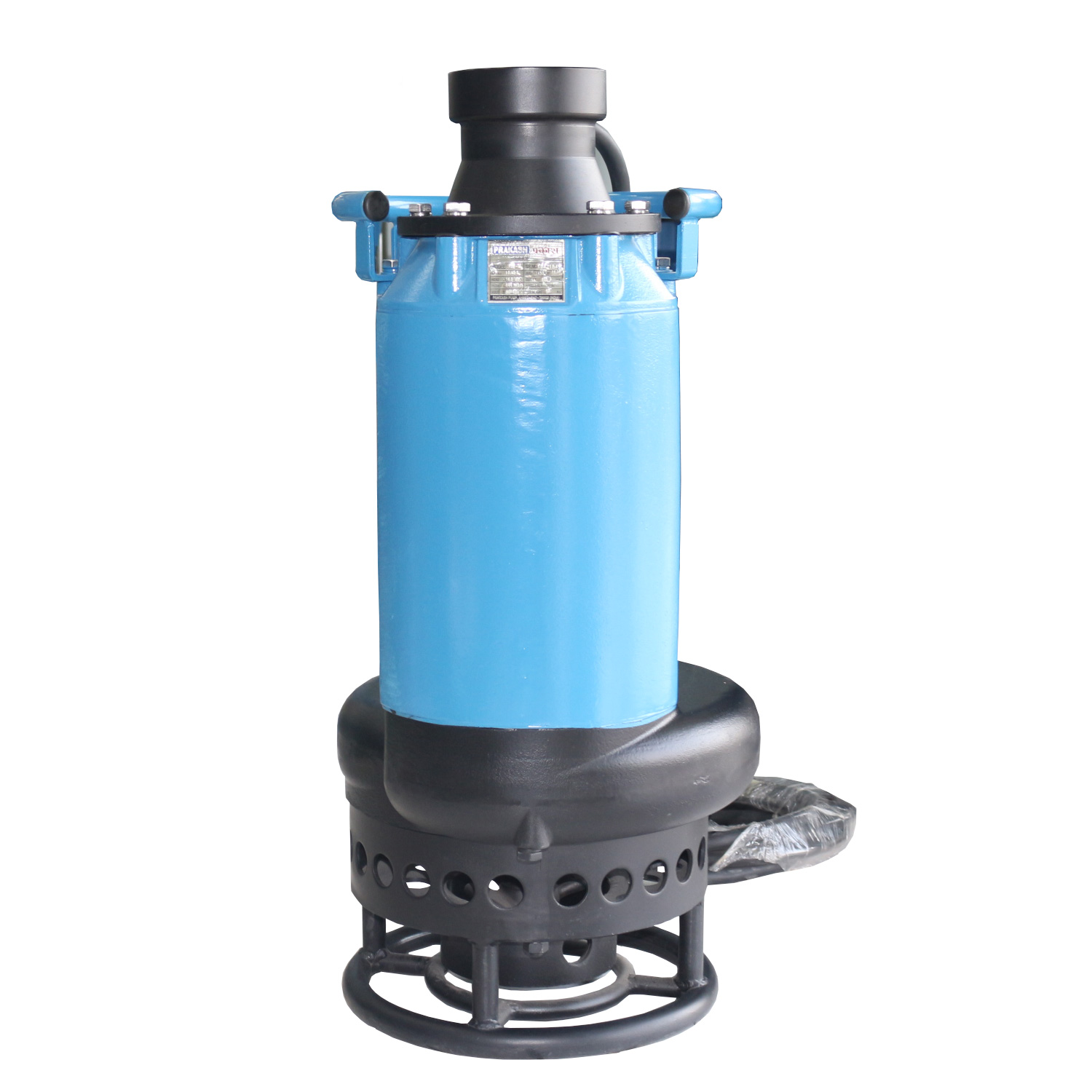

Prakash Submersible Slurry Pump

Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.High chrome alloy impeller combined with agitator for pumping heavy slurry.Slim design with a top discharge enabling installation in smaller casing.For bentonite mixed water in foundation works or muddy water in civil engineering works.

Specification:

  • Capacity: up to 372 m³/h
  • Head: up to 32 meters
  • Discharge: 80mm (3″) to 200mm (8″)
  • Power: 4kW (5.5 HP) to 22kW(30HP)
  • Power supply: three phase 380V ± 105, 50Hz

380V ± 105, 60Hz

  • Insulation class: F
  • Protection class: IP68
  • Cable length :8m
  • Water temperature: up to 40°C
  • water depth: 15m

Application

  • Civil engineering
  • Mines, quarries, coal ore & slurries
  • Sewage treatment plants
  • General pumping purposes
  • Pumping fluid: sludge, liquids-containing mud and bentonite

Model

Model (50/60Hz) Outlet Motor Power Starting Method Rated Current (380V) Rated Capacity Rated Head Max Capacity Max. Head Impeller Passage
mm Kw Hp A m³/h m³/min m m³/h m³/min m mm
PSSP-5.5 80 4 5.5 D.O.L. 10.2 60 1 10 99 1.65 14.8 30
PSSP-10 100 7.5 10 D.O.L. 15.8 90 1.5 10 144 2.4 16.9 30
PSSP-15 150 11 15 D.O.L. 22.5 100 1.67 15 192 3.2 21.5 30
PSSP-20 200 15 20 D.O.L. 30.1 200 3.33 16 372 6.2 22 30
PSSP-30 200 22 30 Star-Delta 42 200 3.33 24 360 6 32 30
