Applications:

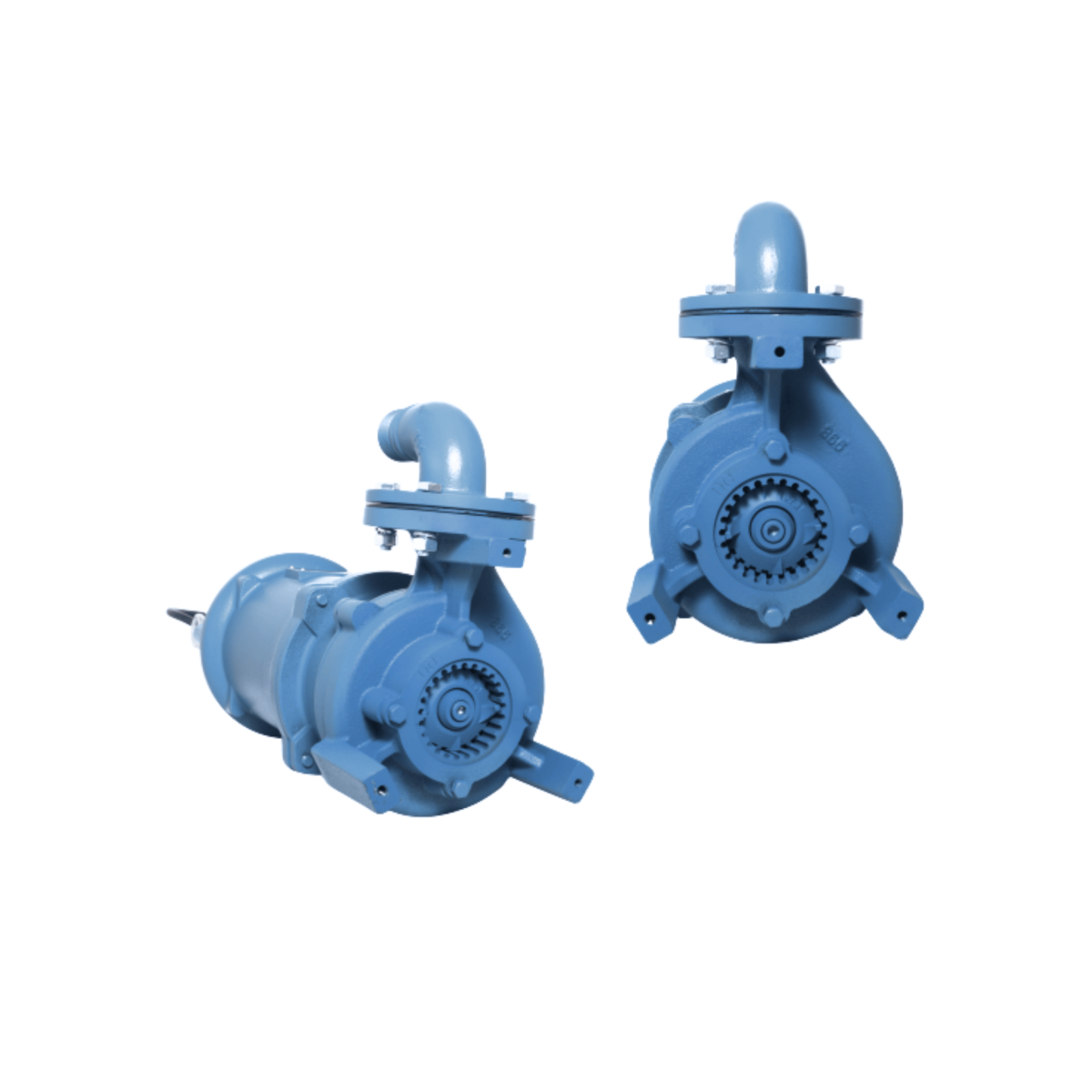

The Sewage Cutter Pump (PSCP Series) Transfer Pump Sets are engineered for reliable transfer of sewage, wastewater, and drainage water containing soft solids, fibrous materials, and other cuttable contaminants. The integrated cutter mechanism helps reduce the size of solids before pumping, minimizing the risk of blockage in the pump and discharge pipeline. The series is particularly suitable for kitchen wastewater, commercial buildings, restaurants, hotels, and sewage collection systems.
Typical applications include:

• Kitchen & Food-Service Wastewater: Wastewater transfer from commercial kitchens, restaurants, hotels, canteens, food courts, and catering facilities where soft solids and food residues may be present.
• Residential & Commercial Buildings: Sewage and wastewater transfer from villas, residential complexes, shopping centers, commercial buildings, and staff accommodation facilities.
• Hotels, Hospitals & Public Buildings: Collection and transfer of sewage and wastewater from hotels, hospitals, schools, offices, and other public facilities.
• Municipal & Infrastructure Projects: Sewage collection, wastewater transfer, drainage systems, and sewage pumping stations.
• Sewage Collection & Transfer: Transfer from sewage pits, sumps, collection chambers, and underground tanks to sewer networks or treatment systems.
• Industrial Wastewater: Transfer of compatible wastewater containing soft solids and fibrous contaminants within the specified cutter and hydraulic capabilities.
• Duty/Standby Systems: Installations requiring automatic standby operation and reliable continuity of sewage and wastewater transfer.

System Description:

The Submersible Sewage Cutter Transfer Pump System is a fully integrated pumping package engineered for reliable collection, transfer, and discharge of sewage, wastewater, and drainage water from sumps, sewage pits, collection chambers, and underground tanks. The system provides automatic pump operation according to the wastewater level, ensuring efficient and dependable sewage transfer under varying inflow conditions.
Pump operation is automatically controlled through level sensors or float switches, with predetermined start and stop levels to maintain the required liquid level within the collection sump or chamber and to minimize the risk of overflow.
For Duty/Standby configurations, the system provides operational redundancy and automatic changeover between pumps. In the event of duty pump failure, the standby pump is automatically activated to maintain continuity of sewage transfer. Where required, Duty/Assist/Standby configurations can be provided to accommodate higher inflow conditions, with additional pumps automatically brought into operation as the wastewater level increases.
The system can be supplied with various Duty/Standby, Duty/Assist, and multiple-pump configurations, together with suitable control panels, level-control devices, alarms, and protection features. System configurations can be customized to meet specific project operating conditions, hydraulic requirements, and client specifications.

Specifications :
Model : PSCP10-16-0.75F To PSCP42-25-5.5
Power range : 0.75 kW - 5.5 kW / 1.0 HP - 7.5 HP
Max Flow : Up to 25 M3/HR
Max Head : Up to 42 m
Standard Outlet range : 2", 2.5"
Rated Speed : 2900 rpm
Frequency : 50Hz
Insulation class :  F
Protection class : IPX8 / IP68
Voltage : Single phase 220-240V, 50Hz
                       Three phase 380-420V, 50Hz
Liquid Temperature : Up to 40°C
Liquid pH value : 4-10

Special Features:

•  Feature availability depends on the selected sewage transfer system configuration, pump design, level-control arrangement, and control philosophy.
• Automatic Duty/Standby Operation – Standby pump automatically takes over in case of duty pump failure.
• Automatic Pump Alternation – Balances pump operating hours for uniform utilization and extended service life.
• Automatic Level Control – Pumps start and stop automatically according to sewage/wastewater level.
•  Automatic Assist Operation – Additional pump starts automatically during high inflow or high-level conditions.
• High-Level Alarm Protection – Provides alarm indication to minimize the risk of sewage overflow.
• Comprehensive Motor Protection – Protection against overload, short circuit, phase failure, and other electrical abnormalities.
• User-Friendly Control Panel – Provides pump status, fault/alarm indication, and Manual/Automatic operation.
• Reliable Standby Backup – Ensures continuity of sewage and wastewater transfer during duty pump failure.
• Flexible Configuration – Available in 1 Duty + 1 Standby, 2 Duty + 1 Standby, and customized multi-pump configurations.
• Optional VFD/PLC/BMS Interface – Available for advanced sequencing, monitoring, alarms, and remote system integration.


  Note : For detailed performance table & curves, please refer to the “Prakash Submersible Sewage Cutter Pump Catalogue”.

                • 1 Duty + 1 Assistant/Standby Pump
                • 2 Duty + 1 Standby Pump

Customized Configurations: Other pump configurations are available upon request and can be engineered to meet specific client requirements, system operating conditions, and project specifications.
