Applications:

The Sewage Pump (PSP Series) Transfer Pump Sets are engineered for reliable sewage, wastewater, and drainage transfer in municipal, residential, commercial, industrial, and civil engineering applications. The systems are designed for handling wastewater containing suspended solids and other contaminants within the specified hydraulic and solids-handling capabilities of the pump.
Typical applications include:

• Municipal & Infrastructure Projects: Sewage transfer, wastewater collection, drainage systems, and municipal pumping stations.
• Residential & Commercial Buildings: Sewage and wastewater transfer from residential buildings, housing complexes, commercial buildings, and public facilities.
• Hotels, Schools & Public Buildings: Collection and transfer of domestic sewage and wastewater from hotels, schools, hospitals, offices, and other public buildings.
• Industrial Applications: Wastewater transfer, industrial drainage, utility wastewater, and general effluent-handling applications.
• Civil Engineering: Construction-site drainage, wastewater transfer, and general civil engineering applications.
• Mining Applications: Mine drainage, and transfer of compatible wastewater containing suspended solids.
• Sewage Collection & Transfer: Transfer of sewage from collection pits, sumps, underground tanks, and sewage chambers to treatment or disposal systems.
• Duty/Standby Systems: Installations requiring enhanced operational reliability, automatic standby pump availability, and continuity of sewage transfer service.

System Description:

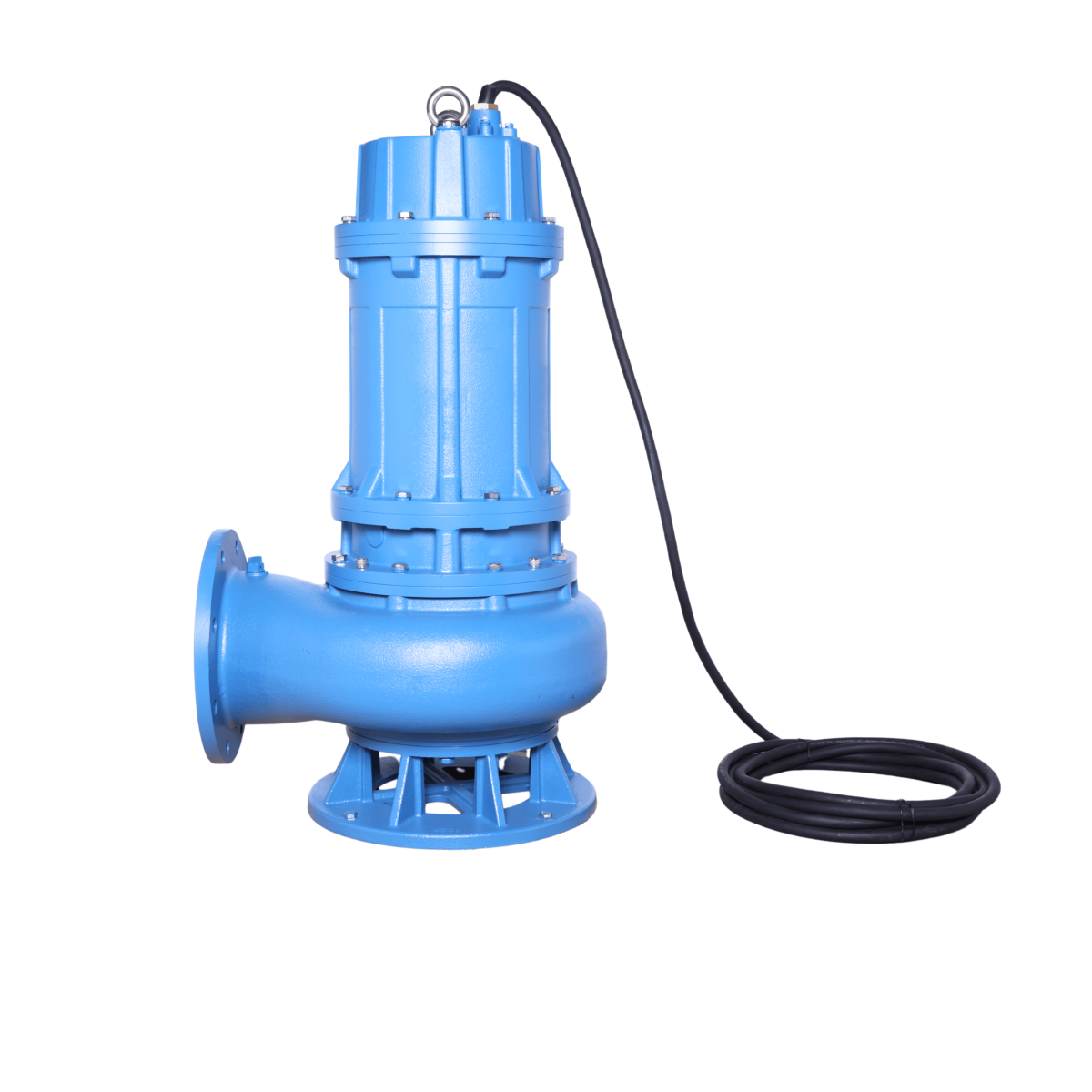

The Submersible Sewage Transfer Pump System is a fully integrated pumping package engineered for reliable collection, transfer, and discharge of sewage, wastewater, and drainage water from sumps, sewage pits, collection chambers, and underground tanks. The system provides automatic pump operation according to the wastewater level, ensuring efficient and dependable sewage transfer under varying inflow conditions.
Pump operation is automatically controlled through level sensors or float switches, with predetermined start and stop levels to maintain the required liquid level within the collection sump or chamber and to minimize the risk of overflow.
For Duty/Standby configurations, the system provides operational redundancy and automatic changeover between pumps. In the event of duty pump failure, the standby pump is automatically activated to maintain continuity of sewage transfer. Where required, Duty/Assist/Standby configurations can be provided to accommodate higher inflow conditions, with additional pumps automatically brought into operation as the wastewater level increases.
The system can be supplied with various Duty/Standby, Duty/Assist, and multiple-pump configurations, together with suitable control panels, level-control devices, alarms, and protection features. System configurations can be customized to meet specific project operating conditions, hydraulic requirements, and client specifications.

Specifications :
Model : PSP7-9-0.37F To PSP500-34-75
Power range : 0.37 kW - 75 kW / 0.5 HP - 100 HP
Max Flow : Up to 1000 M3/HR
Max Head : up to 50 m
Standard Outlet range : 1.25", 1.5", 2", 2.5", 3", 4", 6", 8", 10"
Rated Speed : 1450 & 2900 rpm
Frequency : 50Hz
Insulation class :  F
Protection class : IPX8 / IP68
Voltage : Single phase 220-240V, 50Hz
                       Three phase 380-420V, 50Hz
Liquid Temperature : Up to 40°c
Liquid pH value : 6.5-8.5

Special Features:

•  Feature availability depends on the selected sewage transfer system configuration, pump design, level-control arrangement, and control philosophy.
• Automatic Duty/Standby Operation – Standby pump automatically takes over in case of duty pump failure.
• Automatic Pump Alternation – Balances pump operating hours for uniform utilization and extended service life.
• Automatic Level Control – Pumps start and stop automatically according to sewage/wastewater level.
•  Automatic Assist Operation – Additional pump starts automatically during high inflow or high-level conditions.
• High-Level Alarm Protection – Provides alarm indication to minimize the risk of sewage overflow.
• Comprehensive Motor Protection – Protection against overload, short circuit, phase failure, and other electrical abnormalities.
• User-Friendly Control Panel – Provides pump status, fault/alarm indication, and Manual/Automatic operation.
• Reliable Standby Backup – Ensures continuity of sewage and wastewater transfer during duty pump failure.
• Flexible Configuration – Available in 1 Duty + 1 Standby, 2 Duty + 1 Standby, and customized multi-pump configurations.
• Optional VFD/PLC/BMS Interface – Available for advanced sequencing, monitoring, alarms, and remote system integration.

  Note :  For detailed performance table & curves, please refer to the “Prakash Submersible Sewage Pump Catalogue”.

                • 1 Duty + 1 Assistant/Standby Pump
                • 2 Duty + 1 Standby Pump
                • 3 Duty + 1 Standby Pump

Customized Configurations: Other pump configurations are available upon request and can be engineered to meet specific client requirements, system operating conditions, and project specifications.
