• Municipal water supply
• HVAC and cooling tower
• Hot & cold-water circulation
• Booster pump
• Pool and fountain water transfer

• Model: PVCP80-13, PVCP80-16, PVCP80-20, PVCP80-26, PVCP80-32
• Rated Speed: 1750 & 3500 RPM
• Max Flow: Up to 194 M3/HR
• Max Head: Up to 152 m
• Power: 2.2 kw - 90 kW
• Power Supply: Signle phase 220-240V, 60Hz
                                   Three phase 380-420V, 60Hz
• Inlet/Outlet: 3"x3"
• Liquid Temperature: Up to 85°C
• Liquid pH Value: 6-8
• Density: 1000 Kg/m3
• Kinematic Viscosity: 1 mm²/s
• Enclosure Class: IP55

  Installation and Use :

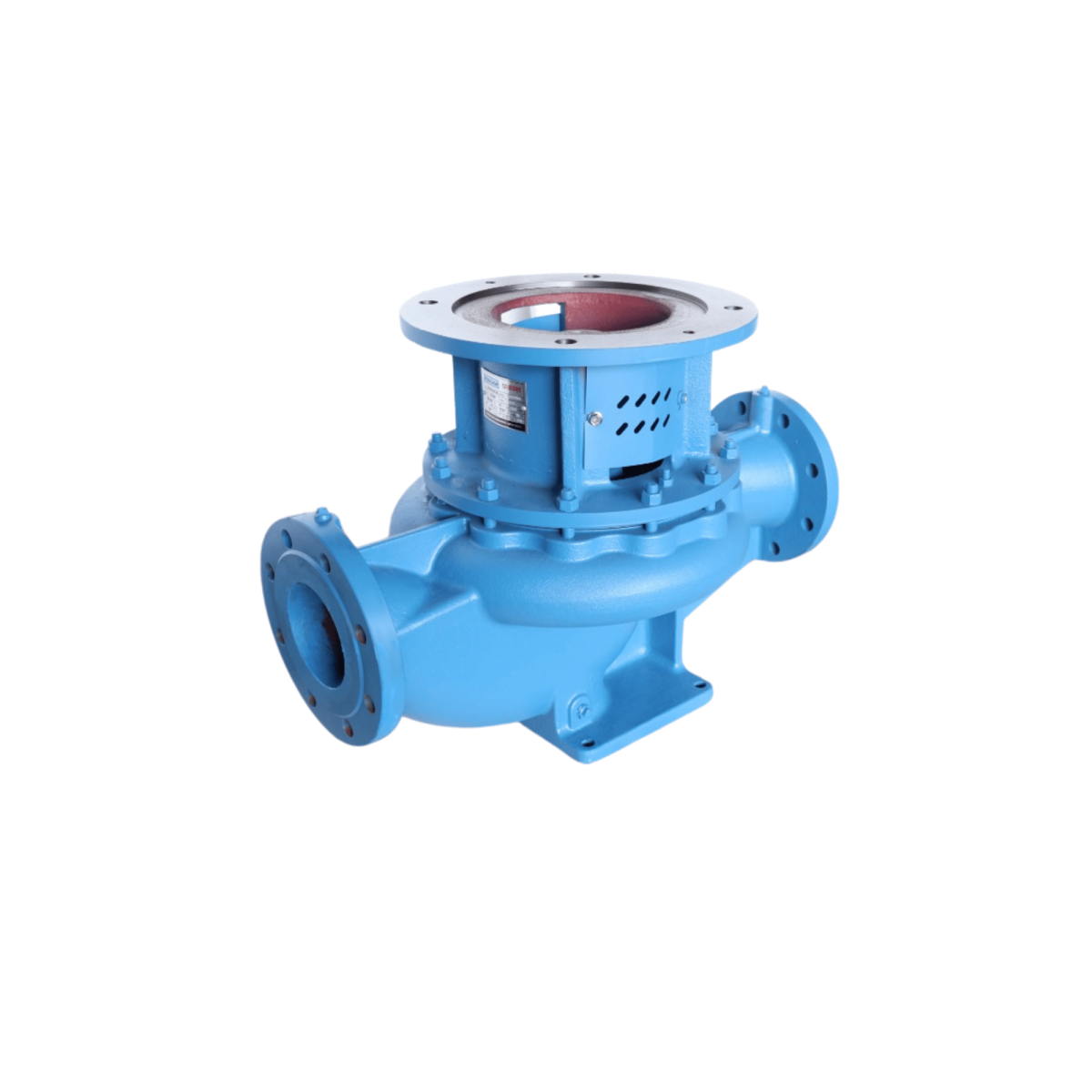

  PRAKASH PVCP series are vertical in-line pumps. The biggest feature is vertical structure which sharply reduces installation space.
  Motor shaft is plugged into pump shaft to ensure alignment of pump and motor. This series pump adopts IEC standard motor and pump head can be assembled swparately.


*For more info Download the catalog
