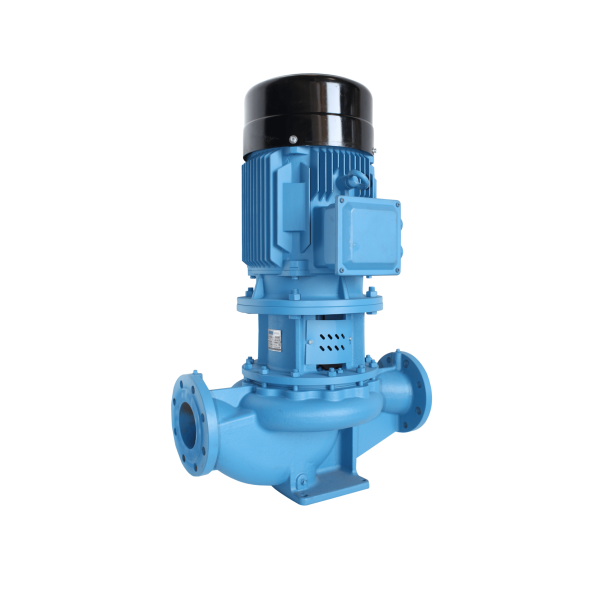

Vertical Centrifugal Pump PVCP100-80-26
Model : PVCP100-80-26
SKU : PVCP100-80-26
Flow :1 LPM - 3000 LPM
Head : 4 Meter - 25 Meter
Applications:
- Municipal water supply
- HVAC and cooling tower
- Hot & cold-water circulation
- Booster pump
- Pool and fountain water transfer
- Water temperature: Up to 85°C
- Power Supply: Three-phase 380-420V, 50Hz
- Power: 11 Kw
- Insulation Class: F
- Protection Class: IP55
- Max Flow: 3000 LPM
- Max Head: 25 m
- PH: 6 to 8
- Suction: up to 3m
Model
Power
Outlet
Q
M3/H
0
20 40 6 80 100 120 140 160 180 KW
HP
LPM
0
333 667
1000 1340 1670 2000 2340 2670 3000 PVCP100-80-26
11
15
3"x3"”
Head (meters)
25
24 23.5
22.5 21.5 19.5 17 14 10 4
- PRAKASH PVCP series are vertical in-line pumps. The most notable feature is the vertical structure, which significantly reduces installation space.
- The motor shaft is plugged into the pump shaft to ensure alignment of the pump and motor. This series pump adopts IEC standard motor and
- pump head can be assembled separately
