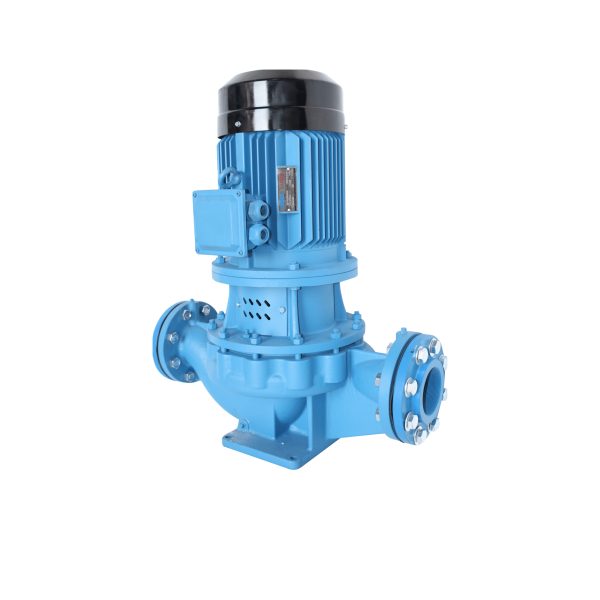

Vertical Centrifugal Pump PVCP80-65-26
Model : PVCP80-65-26
SKU : PVCP80-65-26
Flow :1 LPM - 1670 LPM
Head : 6 Meter - 23 Meter
Applications:
- Municipal water supply
- HVAC and cooling tower
- Hot & cold-water circulation
- Booster pump
- Pool and fountain water transfer
- Water temperature: Up to 85°C
- Power Supply: Three-phase 380-420V, 50Hz
- Power: 5.5 Kw
- Insulation Class: F
- Protection Class: IP55
- Max Flow: 1670 LPM
- Max Head: 23 m
- PH: 6 to 8
- Suction: up to 3m
Model
Power
Outlet
Q
M3/H
0
20 40 6 80 100 KW
HP
LPM
0
333 667
1000 1340 1670 PVCP80-65-26
5.5
7.5
3x3"”
Head (meters)
23
22 21
17.5 12.5 6
- PRAKASH PVCP series are vertical in-line pumps. The biggest feature is the vertical structure, which sharply reduces installation space.
- The motor shaft is plugged into the pump shaft to ensure alignment of pump and motor. This series pump adopts IEC standard motor and
- pump head can be assembled separately
