DESCRIPTION :

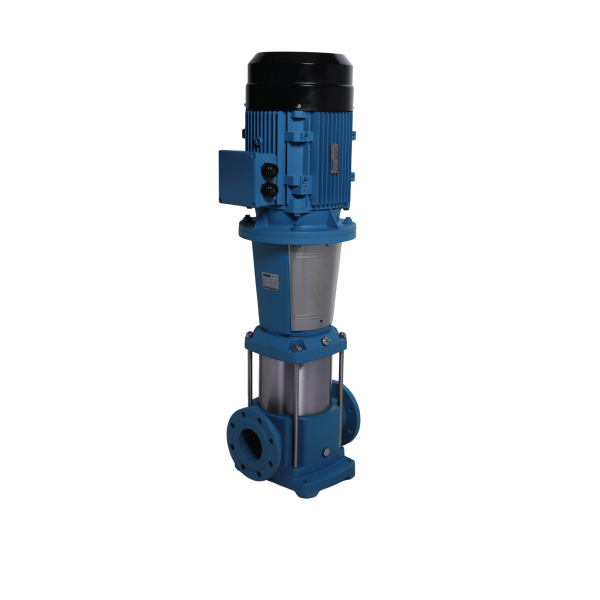

Vertical Multistage Stainless Steel centrifugal Pumps for high-pressure water supply systems, which are compact in size and maintain constant pressure.

APPLICATIONS :

This series is suitable for transferring liquids of low viscosity, non-inflammable and non-Explosive, not containing solid particles or fibers.

• Water supply: Water supply and drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in the main pipe
• Industry: Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary systems, and support equipment.
• Water treatment: ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, and swimming pools.
• Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
• Food and beverage industry
• Fire-fighting systems



FEATURES :
Compact, nice appearance, efficient, low noise, reliable seal, easy to use, and maintain.

OPERATING CONDITIONS :
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.

APPLICATION LIMITS :
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.

SPECIFICATION :

• Models : PVMP90-1-1 To PVMP90-4-2
• Max Flow: 2366 LPM
• Max Head: 147 meters
• Motor power: 11 kW-45 kW (15HP-60HP)
• Voltage : 220-240V and 380-420V, 60 Hz
• Max ambient temperature: 40˚C
• Liquid temperature : 15˚C - 120°C
• pH: 4-10
• Altitude: up to 1000m


• For more information, download the catalog.
