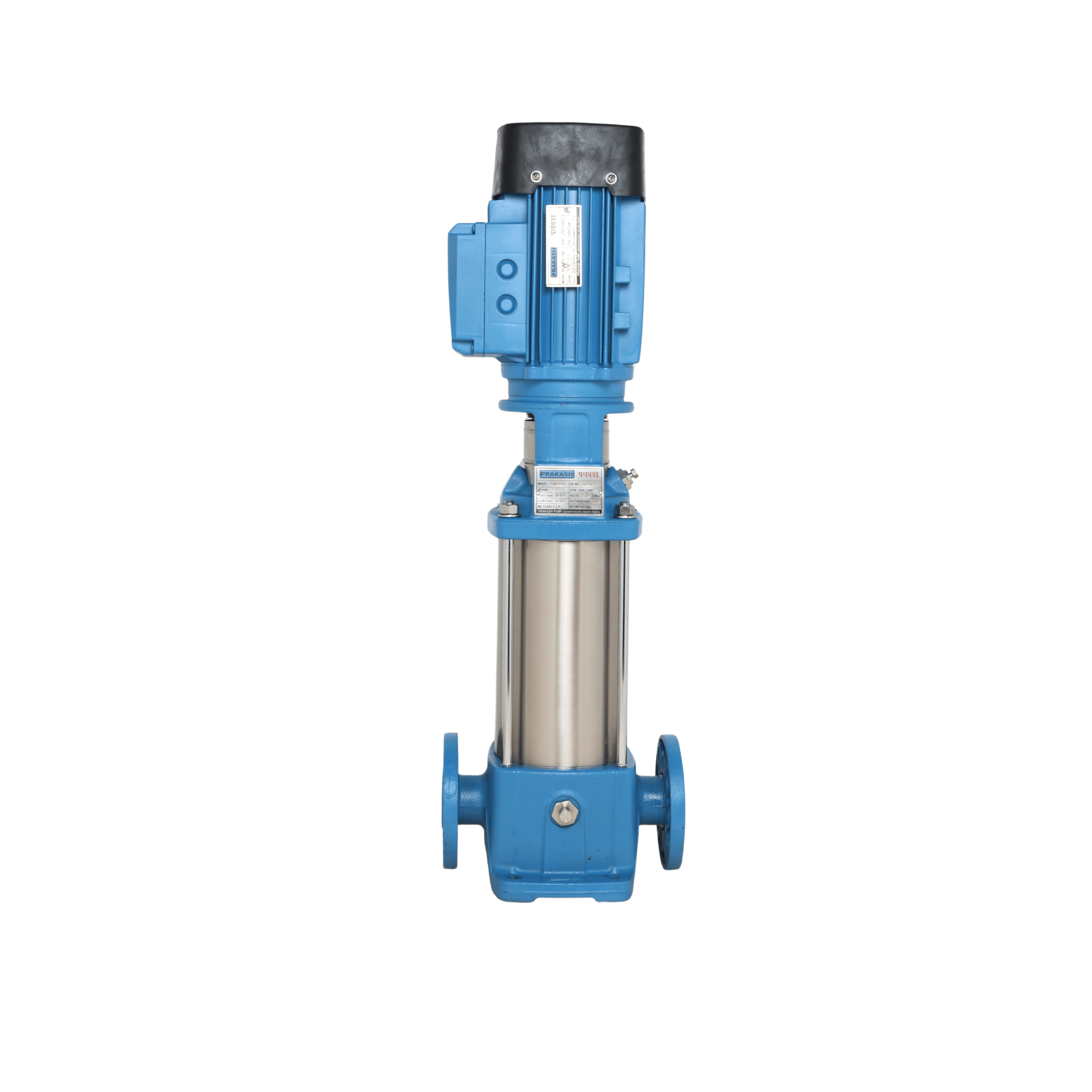

Model : PVMP3

SKU : PVMP3

Flow :1 M3/HR - 4.5 M3/HR

Head : 4 Meter - 228 Meter

DESCRIPTION :

Vertical Multistage Stainless Steel centrifugal Pumps for high pressure water supply system, which are compact in size and maintain constant pressure.

APPLICATIONS :

This series are suitable for transferring liquids of low viscosity, non-inflammable and non-Explosive, not containing solid particles or fibers.

• Water supply: Water supply and drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in main pipe
• Industry: Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary systems, support equipment’s.
• Water treatment: ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools.
• Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
• Food and beverage industry
• Fire-fighting systems



FEATURES :
Compact, nice appearance, efficient, low noise, reliable seal, easy to use and Maintain.

OPERATING CONDITIONS :
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.

APPLICATION LIMITS :
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.

SPECIFICATION :

• Models : PVMP3-2 To PVMP3-36
• Max Flow  : 75 LPM
• Max Head : 228 meter
• Motor power : 0.37Kw-3Kw (0.5HP-4HP)
• Voltage : 220-240V and 380-420V, 50 Hz
• Inlet/Outlet : 1.25" x 1.25"
• Max pump efficiency : 55%
• Liquid temperature : -20˚C To +120°C
• pH : 4-10
• Altitude : up to 1000m


• For more information download the catalog.
