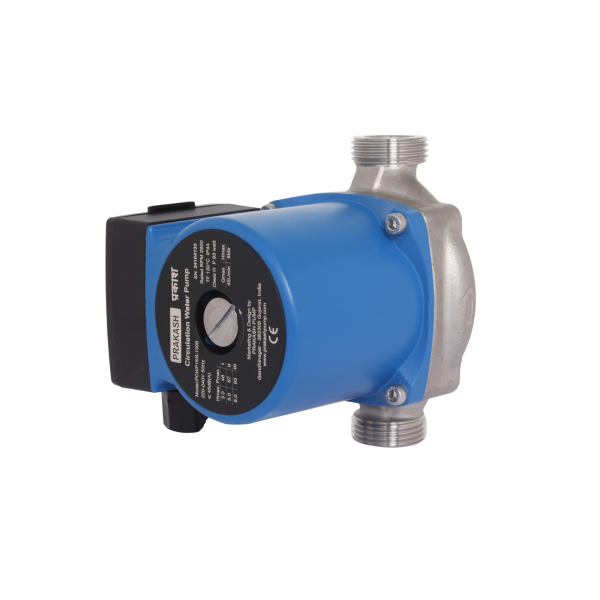

Model : PCWP15/6-130S

SKU : PCWP15/6-130S

Flow :1 LPM - 42 LPM

Head : 1 Meter - 6 Meter

Applications:-
Boiler/Hydronic heating system
Heating Systems
Cooling Systems
Domestic Hot Water Recirculation
Solar Water Heating Systems

Specifications:-

• Max Flow : 42 LPM
• Max Head : 6m
• Speed : 2900 RPM
• Power : 0.093 Kw
• Liquid Temperature up to 130°C
• Ambient Temperature Up to 40°C
• Max Working Pressure 10 Bar
• Voltage : 220-240V, 50Hz
• Protection: IP44



  Installation and Use:-



  PRAKASH PCWP series common circulation pump is designed for water circulation in heating, air conditioning and domestic hot water systems. PCWP has a full-caliber specification model, which can efficiently and simply meet the user's parameter needs. Multi-speed operation adaption to the system requirement Quick and simple electrical installation Dry-running protection protects the pump against dry-running during startup and normal operation Easy to clean and lime-resistant High-quality wet-runner technology Low noise Corrosion resistant impeller and pump housing.




Model	Power (Watt)	Voltage (50Hz)	Rated Speed (RPM)	Inlet/ outlet	Max. Flow (LPM)	Max. Head (meter)	Net Weight (Kg)
PCWP15/6-130S	93/67/48	220- 240V	2900	1" x 1"	42/35/18	6/5/3	2.1
