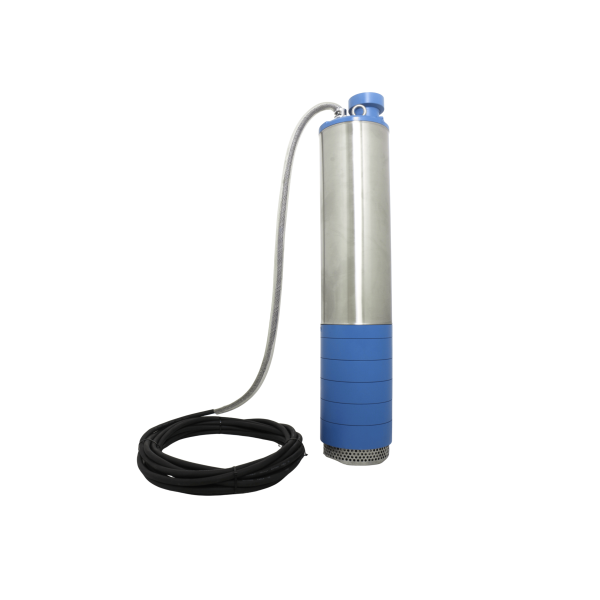

Prakash 15 HP Open Well Sub. Pump PQXNSP-15

  • Prakash 15 HP Open Well Sub. Pump PQXNSP-15
  • Prakash 15 HP Open Well Sub. Pump PQXNSP-15

Model : PQXNSP-15

SKU : PQXNSP-15

Flow :1 LPM - 733 LPM

Head : 7 Meter - 104 Meter

Applications:
  • For water supply from open wells, tanks, or reservoirs.
  • For domestic use, Civil and industrial applications.
  • For garden and irrigation, the Utilization of rainwater

Specification:
  • Head: 104 Mtr
  • Flow: 733 LPM
  • Power: 11 KW / 15 HP
  • Insulation Class: B/F
  • Protection Class: IP 68
  • Cable length: 15m with a Float switch
  • Maximum Immersion depth: 20m
  • Water temperature up to 40°C
  • Power supply: 380-420V, Three Phase 50 Hz

    Model

    Power

    Outlet

    Q

    M3/H

    0

    5

    10

    15

    20

    25

    30

    33

    40

    44

    KW

    HP

    LPM

    0

    82

    167

    250

    333

    417

    500

    550

    666

    733

    PQXNSP-15

    11

    15

    G3

    Head (m)

    104

    102

    99

    93

    85

    72

    55

    45

    20

    7


Function and feature:
  • The hydraulic part under the motor and motor cooled by the pumped water for safe operation, also with the pump is only partially immersed.
  • An electric motor cooled by the pumped liquid for a long time.
