• For water supply from open wells, tanks, or reservoirs.
• For domestic use, Civil and industrial applications.
• For garden and irrigation, the Utilization of rainwater



• Head: 49 Mtr
• Flow: 350 LPM
• Power: 2.2 KW / 3.0 HP
• Outlet: 2"
• Insulation Class: F
• Protection Class: IP 68
• Maximum Immersion depth: up to 20m
• Water temperature up to 40°C
• Minimum Internal diameter of well: 155m
• Power supply: 220-240V, Single Phase 60 Hz



• Single phase with a built-in capacitor and thermal protector on the control box is required. Three-phase with built-in thermal protector.
• Sealed motor equipment has built-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or overcurrent.

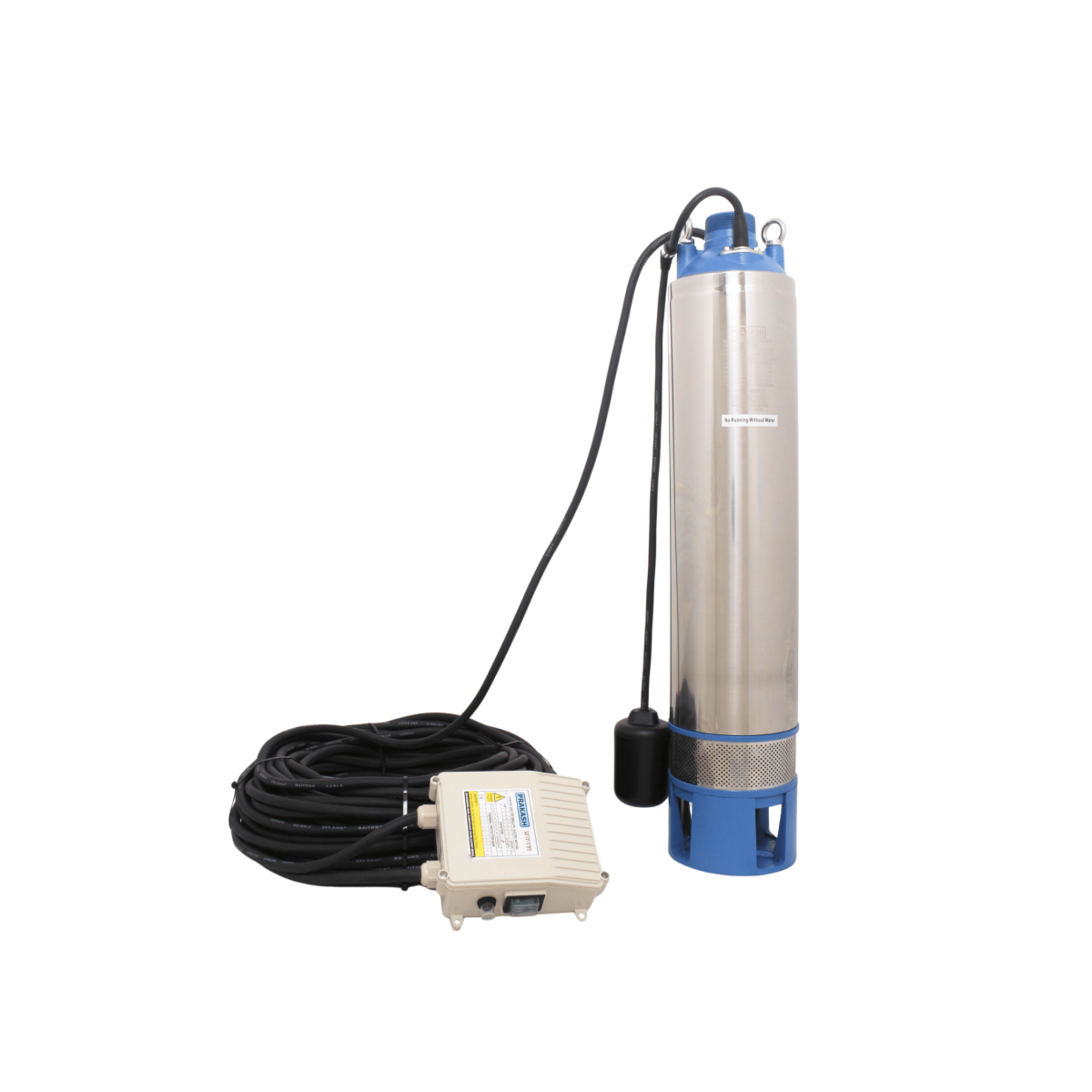

• Close-coupled multi-stage submersible pump in chrome–nickel stainless steel.
• The hydraulic part under the motor is cooled by the pumped water for safe operation, and the pump is only partially immersed.
• Double shaft seal with an interposed oil chamber.
• The suction strainer prevents the entrance of solids with a diameter bigger than 2 mm.



  Model	Power		Q	M3/H	0	3	9	10	12	15	18	21
  	KW	HP		LPM	0	50	150	167	200	250	300	350
  P1002	2.2	3.0	Head (m)		49	47	43	42	40	36	32	26
