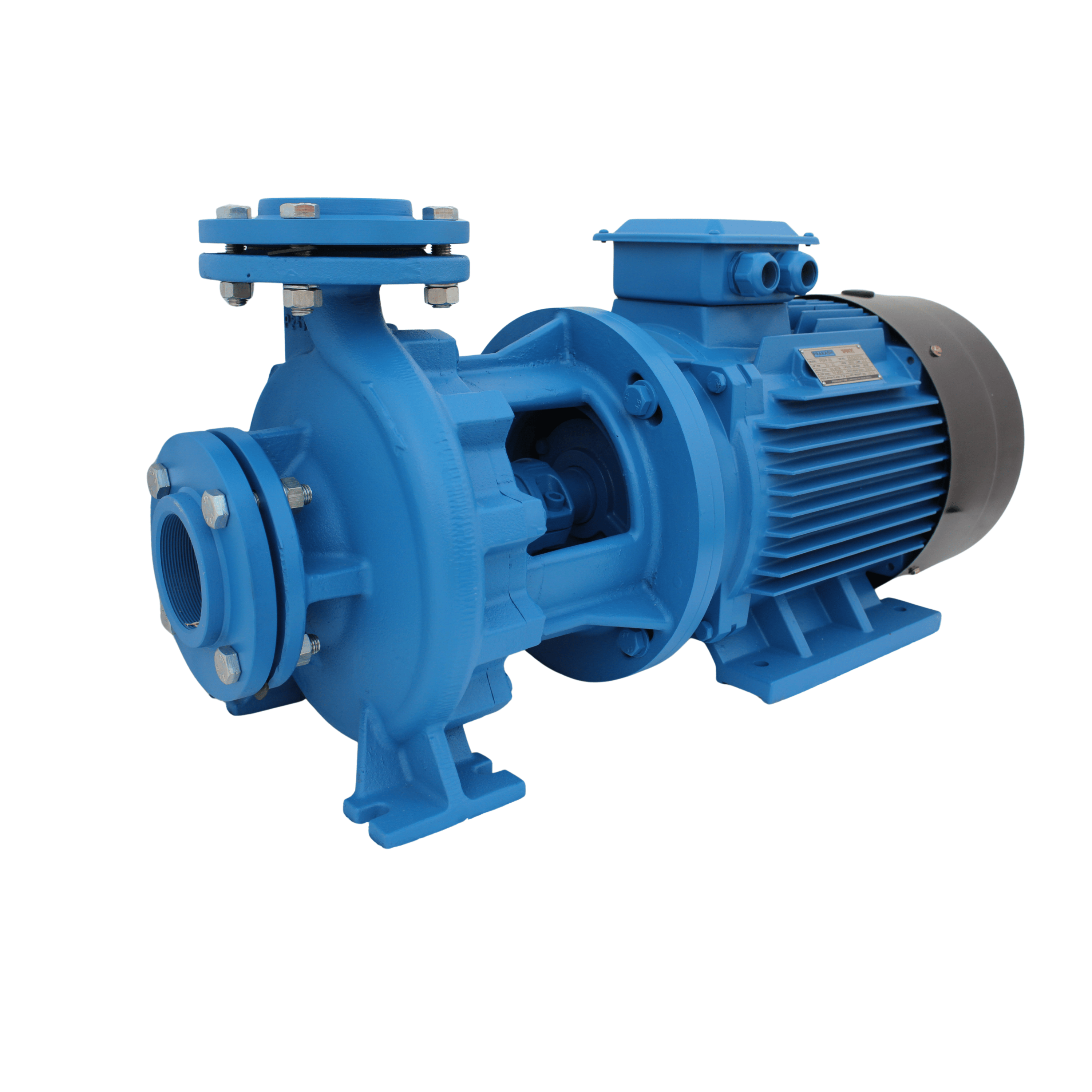

Prakash 30 HP Solo Industrial Pump - PSPP-30

  • Prakash 30 HP Solo Industrial Pump - PSPP-30
  • Prakash 30 HP Solo Industrial Pump - PSPP-30
  • Prakash 30 HP Solo Industrial Pump - PSPP-30
  • Prakash 30 HP Solo Industrial Pump - PSPP-30

Model : PSPP-30

SKU : PSPP-30

Flow :1 M3/HR - 90 M3/HR

Head : 65 Meter - 88 Meter

Applications:-

  • Civil & agriculture
  • Industrial or general plant use.
  • Hot and cold water circulation
  • Spray or flowing irrigation
  • Autoclave feed
  • High pressure system
  • Residential and commercial chiller plant
  • Conditioning and any other general service requiring transfer of clean liquids.

Specifications:-

  • Max Flow: 1500 LPM
  • Max Head: 88m
  • Speed : 2900 RPM
  • Power : 22 Kw.
  • Manometric Suction Lift Up to 8m
  • Liquid Temperature between 10°C to 105°C
  • Ambient Temperature Up to 40°C
  • Working Pressure 10 Bar
  • Voltage : 380-420V, 50Hz
  • Inlet/Outlet : 3"x3"

    Installation and Use:-

    These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. These system can be installed in any position, provide the inlet opening faces upwards, and, thanks to their Special design-which allows back pull out of the motor and the rotary parts Of the pump and subsequent re-assembly without having to remove the pump Body and the pipes connected to it – can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system heating, conditioning and any other service requiring transfer of clean liquids.

    Model

    Power

    Inlet /Outlet

    Q

    M3/H

    0

    6

    9

    12

    15

    18

    21

    24

    2730364248  54  60  72  84  90

    KW

    HP

    LPM

    0

    100

    150

    200

    250

    300

    350

    400

    450500600700800 9001000120014001500

    PSPP-30

    22

    30

    3"x3"

    Head (meters)

    88

    88

    88

    87.5

    87

    86.5

    86.5

    86

    8685858584.5 82.5  80 75   70   65
