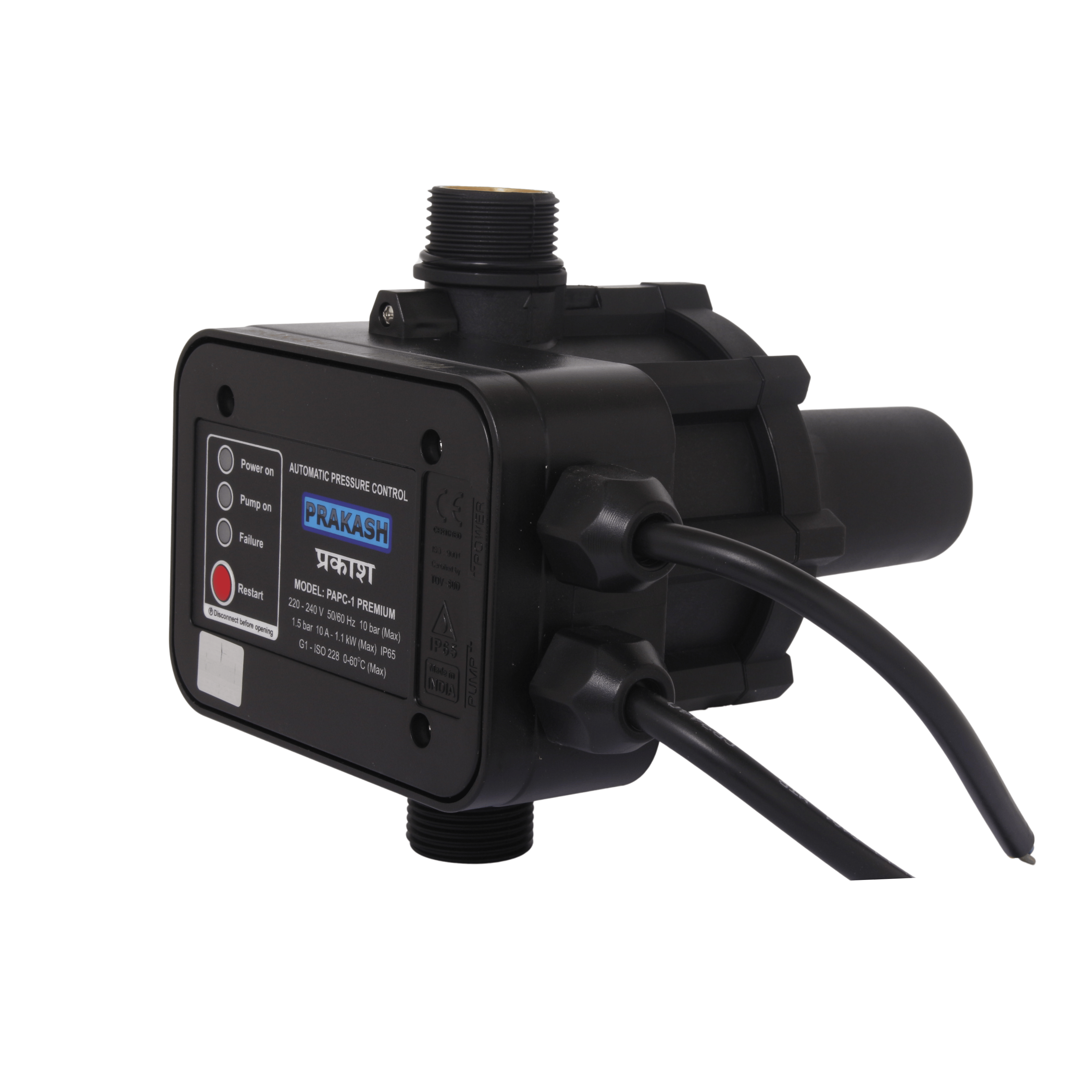

Model : PAPC-1

SKU : PAPC-1

Flow :0 M3/HR - 0 M3/HR

Head : 0 Meter - 0 Meter

Applications :-
Household Water Consumption
Commercial Water Consumption
Garden Water Consumption.

Pump Controller is more energy saving, more intelligent and more humanized.
It is run the pump safe and more environment friendly, Pump controller improves the imbalance of water conservancy, extend water pump service life, make the most use of water resource.

Products Advantages:

Dynamic Shape:
Streamlined design with intelligent technology it gives Dynamic Shape.

Delay Startup:
The pressure controller delays to start 3 seconds after the current is switched on to protect the pump and personal safety.

Dry running protection :
After 3-5 seconds usages without water , the controller will cutoff current source automatically

Automatic restart:
Circulate by time, automatically restart to test water flow until water supply going stable.

Stop water supply and stop the pump:
When stopping water supply, the intelligent control system will inspect automatically and control the pump to slow down and stop operating

Flow Control:
When the outlet water flow becomes slow, the intelligent control system will inspect automatically and switch to small flow control system to guarantee normal use of the water pump, which infinitely extends the life span of the controller and automatically realize the barrier free operation of water pump.

Overload Protection:
The intelligent system is equipped with heat overload protector to prevent water pump being overheated and damages under abnormal use.

Rated voltage	220V-240V, 110V-120V, 85V-285V
Frequency	50/60 Hz
Maximum Current	10A/20A/30A
Maximum power	1.1KW, 1.5KW, 2.2KW
Starting pressure setting	1.0 Bar/1.5 Bar/2.2 Bar/1.0-2.5 Bar/2.0 Bar - 4.0 Bar
Max. working pressure	10 bar
Cable Requirement	Cable 25cm for power and 40cm for motor
Connection thread	Inlet male thread G1"  Outlet male threads G1"
