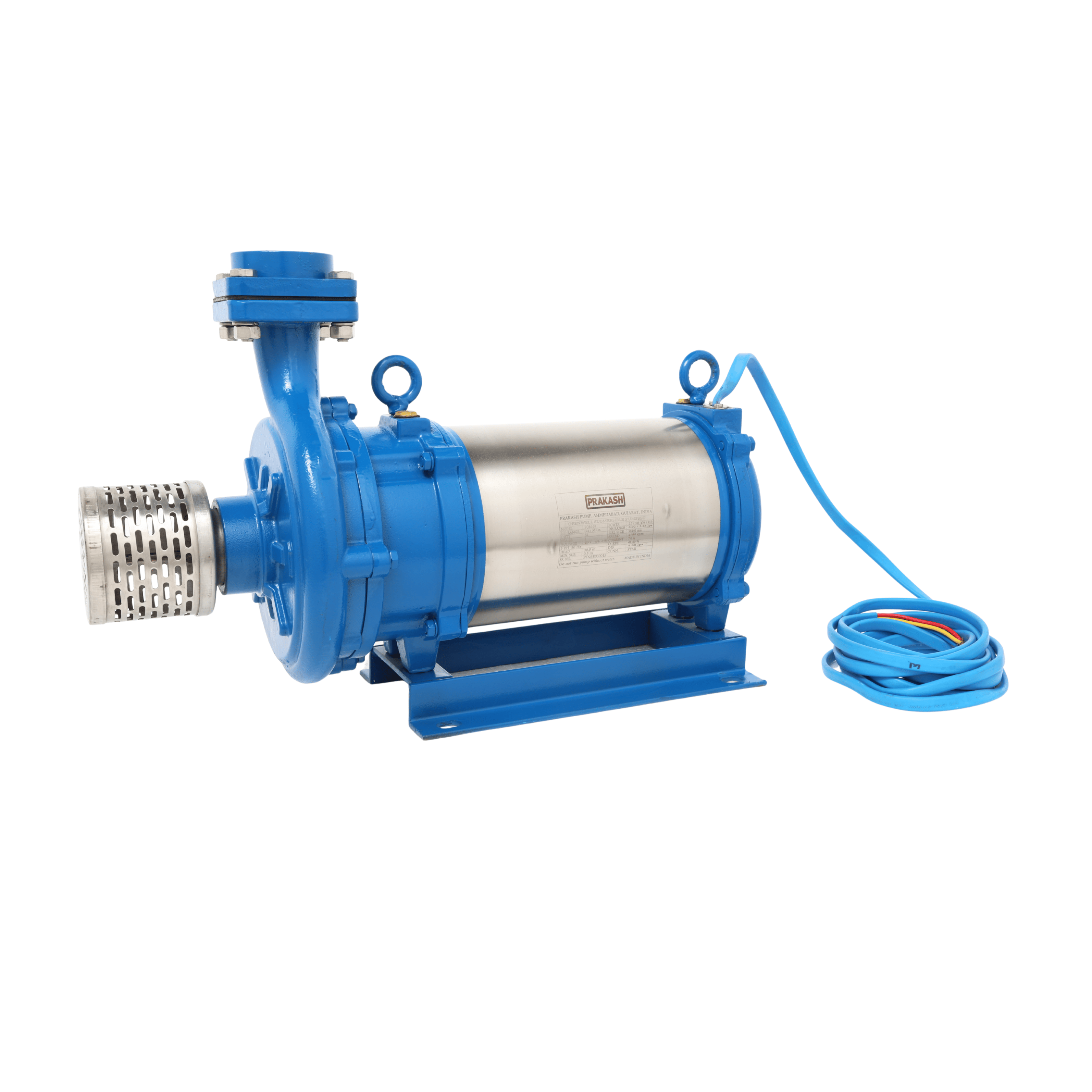

Model : POM

SKU : POM

Flow :1 M3/HR - 96 M3/HR

Head : 10 Meter - 65 Meter

Applications:

• Domestic water supply
• Hotels, Buildings, Apartments, Hospitals
• Small farms, Agriculture, Gardening
• Public water supply schemes
• Lift Irrigation Schemes
• Drip and Sprinkler Irrigation Schemes
• Booster application
• Circulation, Ornamental fountain installation and Air-conditioning plants
• Construction sites

Technical Specification:
Models : POM-03 To POM-10 LH-42
Power : 2.2KW - 7.5KW / 3.0HP - 10HP
Max Head : 65 Meters
Max Flow : 1600 LPM
Voltage : Single Phase 220-240v, 50Hz
                    Three Phase 380-420v, 50Hz
Speed : 2900 rpm

Installation and Use :

Prakash Open well Monoset Pumps Series are designed and manufactured for optimum efficiency to cater different needs of water handling. The pump range is suitable for a wide range of applications in Agricultural, Domestic, Commercial establishments. These pumps have dynamically balanced rotors and impellers to insure vibration free performance and enhance life. Uni-casing construction, Flat performance curves at high delivery rates, to prevent motor overloading even during prolonged use, Good Suction capacities at both low and high delivery rates, Suitable for horizontal mounting with top central discharge, Reduced numbers of parts with space saving innovative construction. Designed to prevent overloading and motor burning, Replaceable wearing parts and hence longer life, Easy maintenance and spares availability, more hygienic & potable for drinking water.

Model	Power		Phase	Inlet/Outlet	Max Flow        (LPM)	Max Head    (m)
	KW	HP
POM-03S	2.2	3	1 Phase	2”x2”	550	39
POM-03	2.2	3	3 Phase	2”x2”	550	39
POM-05 HH-50	3.7	5		2”x2”	550	50
POM-05 LH-25	3.7	5		3”3	1450	25
POM-07 HH-60	5.5	7.5		2.5”x2”	800	63
POM-07 LH-36	5.5	7.5		3”x3”	1450	36
POM-10 HH-65	7.5	10		2.5”x2”	830	65
POM-10 LH-42	7.5	10		3”x3”	1600	42
