DESCRIPTION

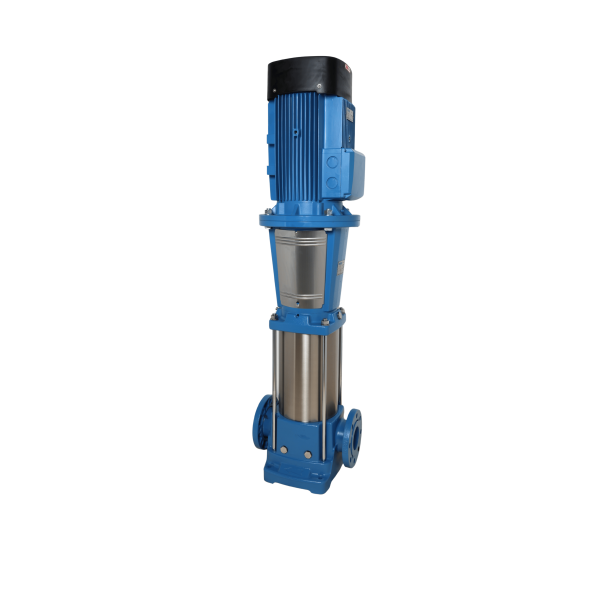

Stainless steel vertical multistage centrifugal pumps for high pressure water supply system, which are compact in size and maintain constant pressure.
APPLICATIONS
This series are suitable for transferring liquids of low viscosity, non-inflammable and non-Explosive, not containing solid particles or fibers.
- Water supply: Water supply and drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in main pipe
- Industry: Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary systems, support equipment’s.
- Water treatment: ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools.
- Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
- Food and beverage industry
- Fire-fighting systems
FEATURES
- Compact, nice appearance, efficient, low noise, reliable seal, easy to use and Maintain.
OPERATING CONDITIONS
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.
- Rated Flow (M³/H) : 45
- Flow range (m3/h) : 22-58
- Pressure (bar) : 33
- Motor power : Mar-45
- Temperature range © : -15˚C to +120°C
- Pump efficiency (%) : 79
- Inlet pipe size (inches) : 3
- Outlet pipe size (inches) : 3
- StandardPN : 16-25-40
- DIN Flange (DN) : DN80
